Power Steering System, Bleeding: Bleeding

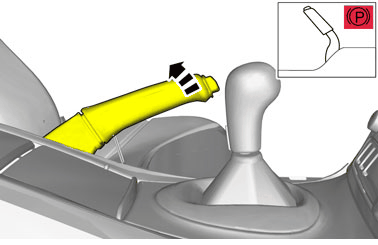

Fig 1: Applying Parking Brake

Courtesy of VOLVO CARS CORPORATION

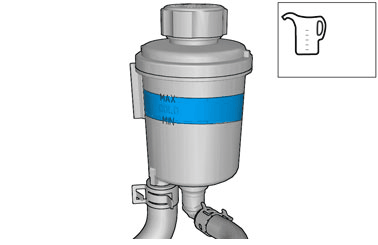

Fig 2: Identifying Fluid Level Fill Range

Courtesy of VOLVO CARS CORPORATION

WARNING:

Avoid skin contact with the specified material.

CAUTION:

The fluid level must remain between the MAX and MIN marks.

Use: Power steering fluid, 1161529

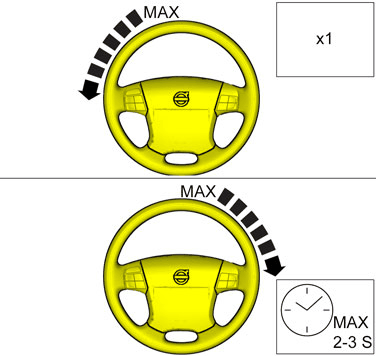

Fig 3: Identifying Steering Wheel Max Turning Radius

Courtesy of VOLVO CARS CORPORATION

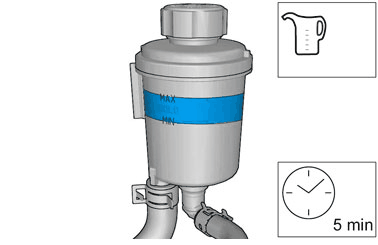

Fig 4: Identifying Fluid Level Fill Range

Courtesy of VOLVO CARS CORPORATION

WARNING:

Avoid skin contact with the specified material.

CAUTION:

Make sure that fluid level is to the MAX mark.

Use: Power steering fluid, 1161529

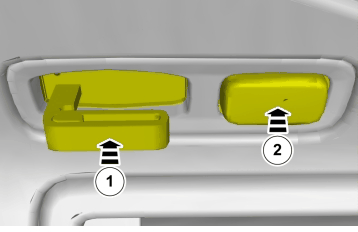

Fig 5: Starting/Stopping Vehicle Using Remote Key

Courtesy of VOLVO CARS CORPORATION

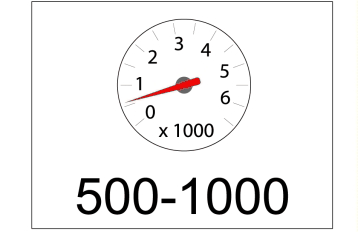

Fig 6: Identifying RPM Range

Courtesy of VOLVO CARS CORPORATION

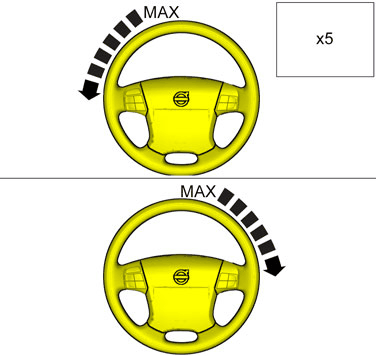

Fig 7: Identifying Steering Wheel Max Turning Radius

Courtesy of VOLVO CARS CORPORATION

Fig 8: Identifying Fluid Level Fill Range

Courtesy of VOLVO CARS CORPORATION

WARNING:

Avoid skin contact with the specified material.

CAUTION:

Make sure that fluid level is to the MAX mark.

Use: Power steering fluid, 1161529

Fig 9: Starting/Stopping Vehicle Using Remote Key

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the engine is switched off.

Fig 10: Starting/Stopping Vehicle Using Remote Key

Courtesy of VOLVO CARS CORPORATION

Fig 11: Identifying RPM Range

Courtesy of VOLVO CARS CORPORATION

Fig 12: Identifying Steering Wheel Max Turning Radius

Courtesy of VOLVO CARS CORPORATION

Fig 13: Starting/Stopping Vehicle Using Remote Key

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the engine is switched off.

Fig 14: Identifying Fluid Level Fill Range

Courtesy of VOLVO CARS CORPORATION

WARNING:

Avoid skin contact with the specified material.

CAUTION:

Make sure that fluid level is to the MAX mark.

Use: Power steering fluid, 1161529

Fig 15: Starting/Stopping Vehicle Using Remote Key

Courtesy of VOLVO CARS CORPORATION

Fig 16: Identifying RPM Range

Courtesy of VOLVO CARS CORPORATION

Fig 17: Identifying Steering Wheel Max Turning Radius

Courtesy of VOLVO CARS CORPORATION

Fig 18: Starting/Stopping Vehicle Using Remote Key

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the engine is switched off.

Fig 19: Identifying Fluid Level Fill Range

Courtesy of VOLVO CARS CORPORATION

WARNING:

Avoid skin contact with the specified material.

CAUTION:

Make sure that fluid level is to the MAX mark.

Use: Power steering fluid, 1161529
