VVT Solenoid, Inspection And Cleaning: Inspection: Inspection

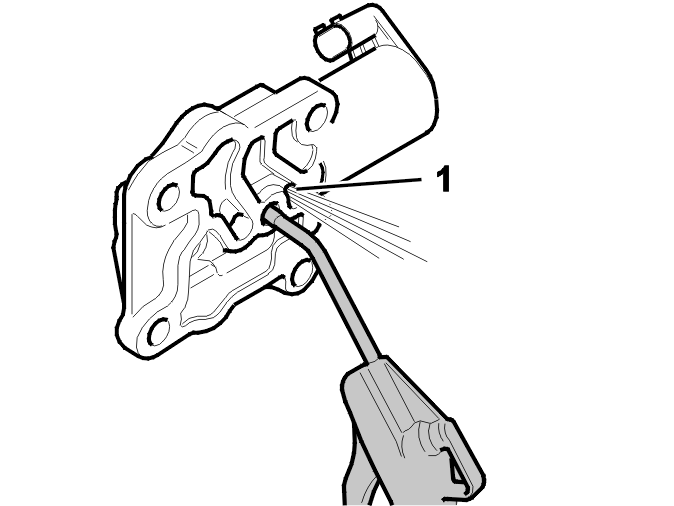

Fig 1: Inspecting VVT Solenoid
GLL101454Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove VVT solenoid from camshaft cover.

Blow through center hole with compressed air.

Air should emerge from inner hole (1) nearest coil.
