Fuel Level Sensor, Pump Side Connector End View (7/143)

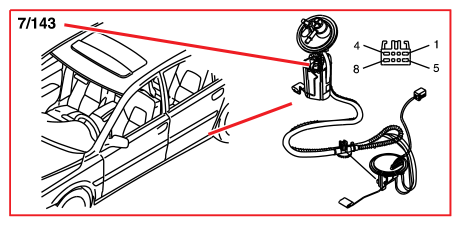

Fig 1: Fuel Level Sensor, Pump Side Connector End View (7/143)

G10827622

Courtesy of VOLVO CARS CORPORATION
