Sealing Rings Connecting Socket, Replacing: Installation: Notes

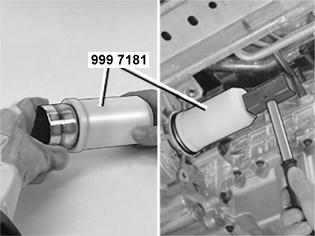

Fig 1: View Of Tapping Sleeve Into Differential

Courtesy of VOLVO CARS OF NORTH AMERICA.

Heat the sleeve in an oven to 100-120 °C and place in: 9997181 . Install on the transmission and tap in the sleeve until it reaches the differential.

WARNING:

Use protective gloves when handling the heated sleeve.

WARNING:

Use ear protectors

Cool the sleeve using compressed air.

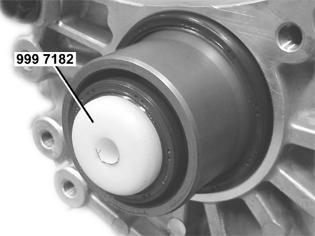

Fig 2: Identifying Special Tool 9997182

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install: 9997182 .

Carefully install both sealing rings.

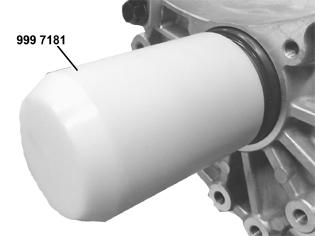

Fig 3: View Of Using Special Tool 9997181 To Install Both Seals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use: 9997181 and tap in both the seals.

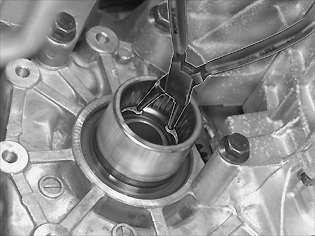

Fig 4: Identifying Removal Of Circlip From Connecting Socket

Courtesy of VOLVO CARS OF NORTH AMERICA.
