Removing The Control Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volvo S60, 2008 Volvo S60, 2007 Volvo S60, 2006 Volvo S60, and 2005 Volvo S60. However, it is still accessible from the selected car via links, so may be relevant.

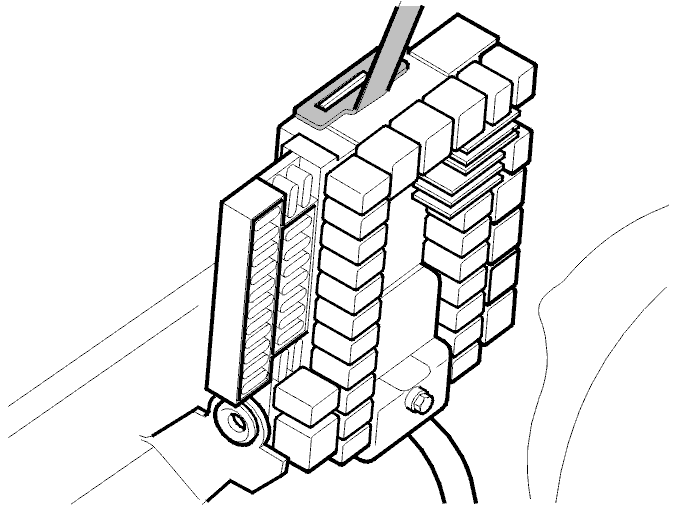

Fig 1: Identifying Integrated Relay/Fusebox In Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

The rear electronic module (REM) is a separate unit in the relay box in the cargo compartment.

Remove the integrated relay / fusebox. See Removing The Integrated Relay/Fusebox In The Cargo Compartment .

Fig 2: Disconnecting Control Module Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the screw holding the connector so that it is free of its threads. Check that the screw is free using your fingers
Disconnect the connector. Use an open spanner and a support. See the illustration.

NOTE:

Do not damage the pins.

Fig 3: Identifying Relay Box In Passenger Compartment/Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove all relays and shunts bridged to the control module.
Note the locations.

Fig 4: Removing Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the catch on the rear. Use a screwdriver
Lift and pull out the control module.
