Replacing The Sensor

Clean thoroughly around the sensor. Remove the sensor and separate the connector. See Fig 1 .

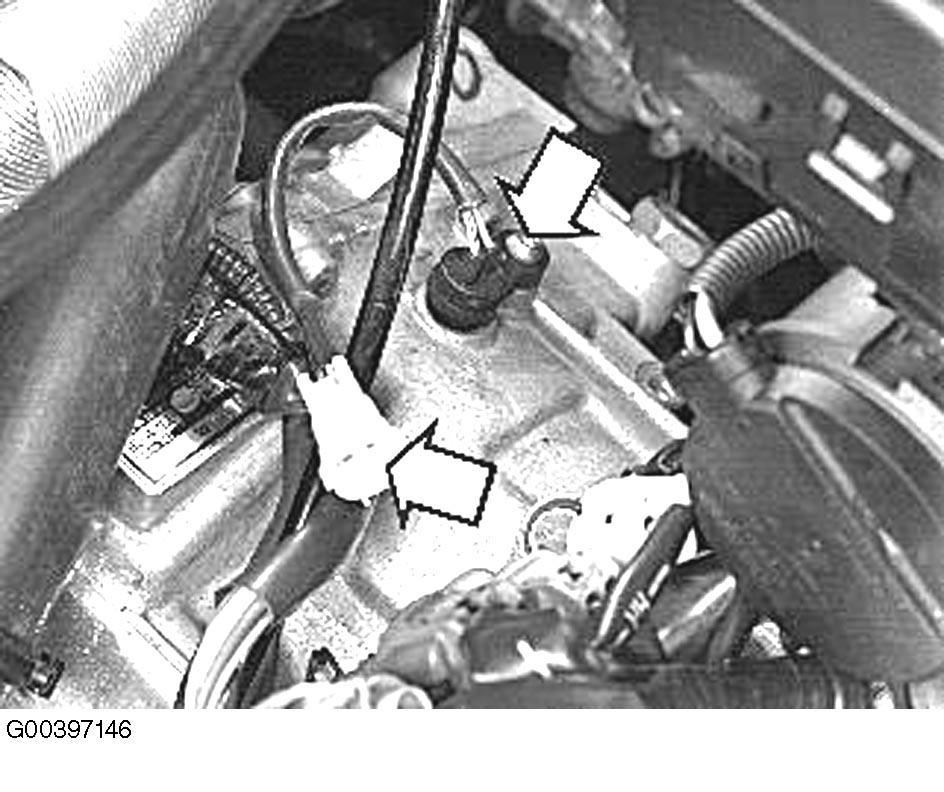

Fig 1: Removing Speed Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• The new sensor with a new O-ring. Lubricate the O-ring with automatic transmission fluid
• Tighten the screw. Torque: 5.5 Nm.
