Distribution Plate

Remove the locking pin (368) (can be reused). See Fig 1. Lift up the distribution plate together with gasket C.

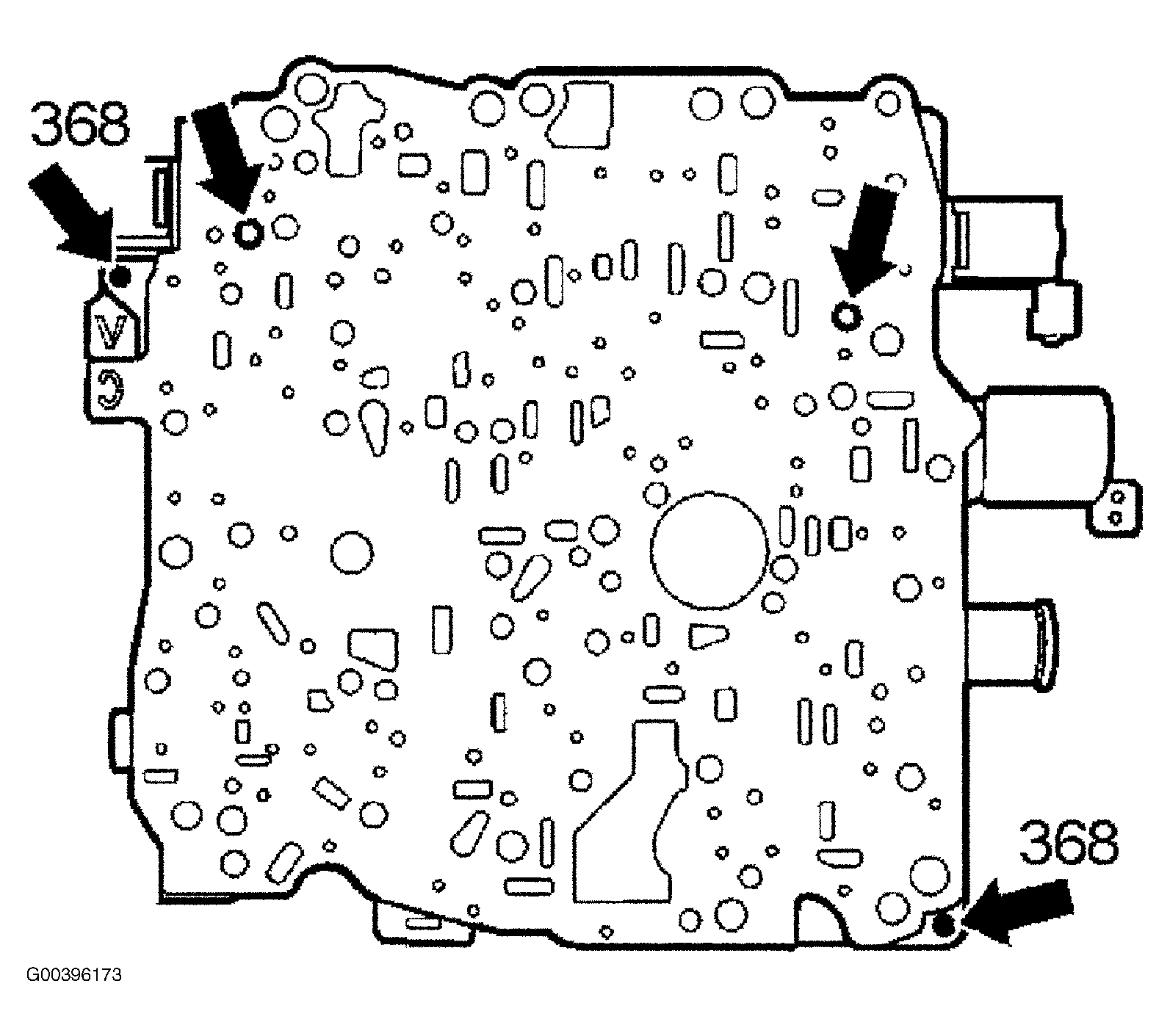

Fig 1: Locating Distribution Plate Locking Pin

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Do not damage the 2 small strainers on the distribution plate.

Lift out gasket V.
