Installing New Gaskets

CAUTION: Ensure that the gaskets are correctly positioned.

Install gasket 371 marked V on the valve housing. See Fig 1.

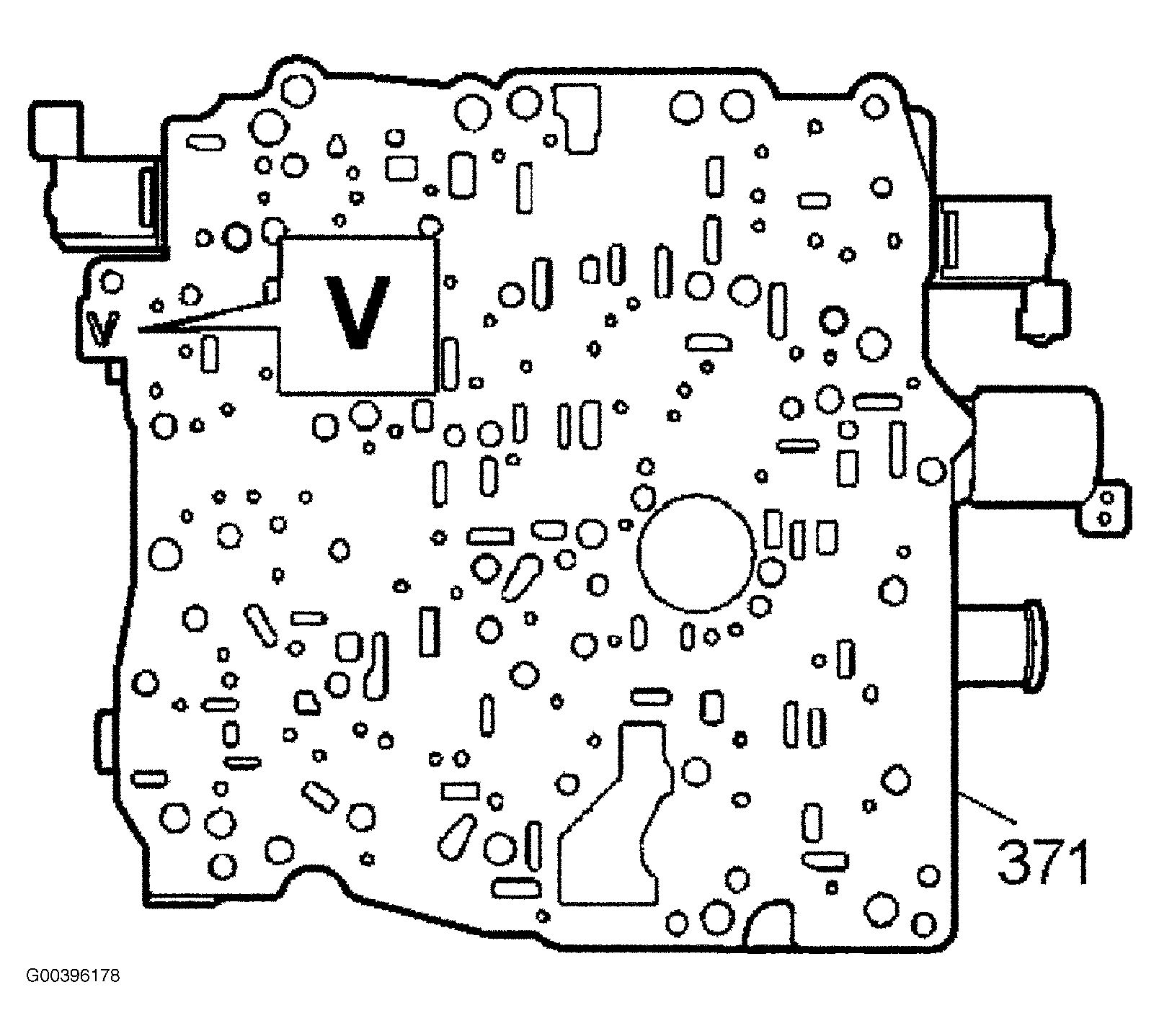

Fig 1: Identifying Valve Housing Gasket "V"

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the distribution plate 370 on the gasket. The strainers must be replaced if they are damaged. See the illustration for their positions. See Fig 2.

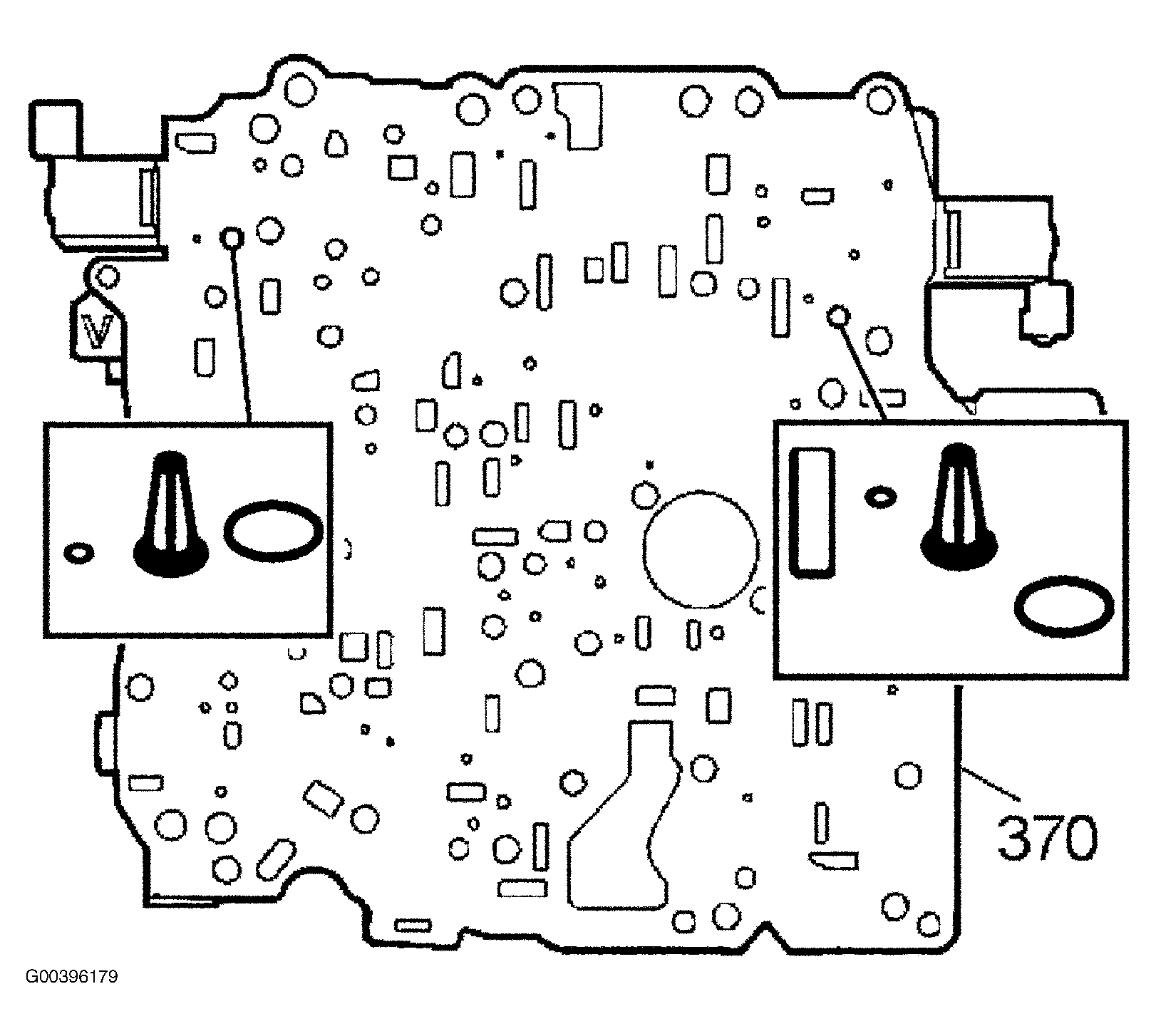

Fig 2: Identifying Distribution Plate Strainers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lock the gasket and the distribution plate in the valve housing using the two plastic plugs. Apply a little petroleum jelly to the outer ends of the distribution plate so that the gasket C does not slide. Install gasket 369 marked C on the distribution plate. See Fig 3.

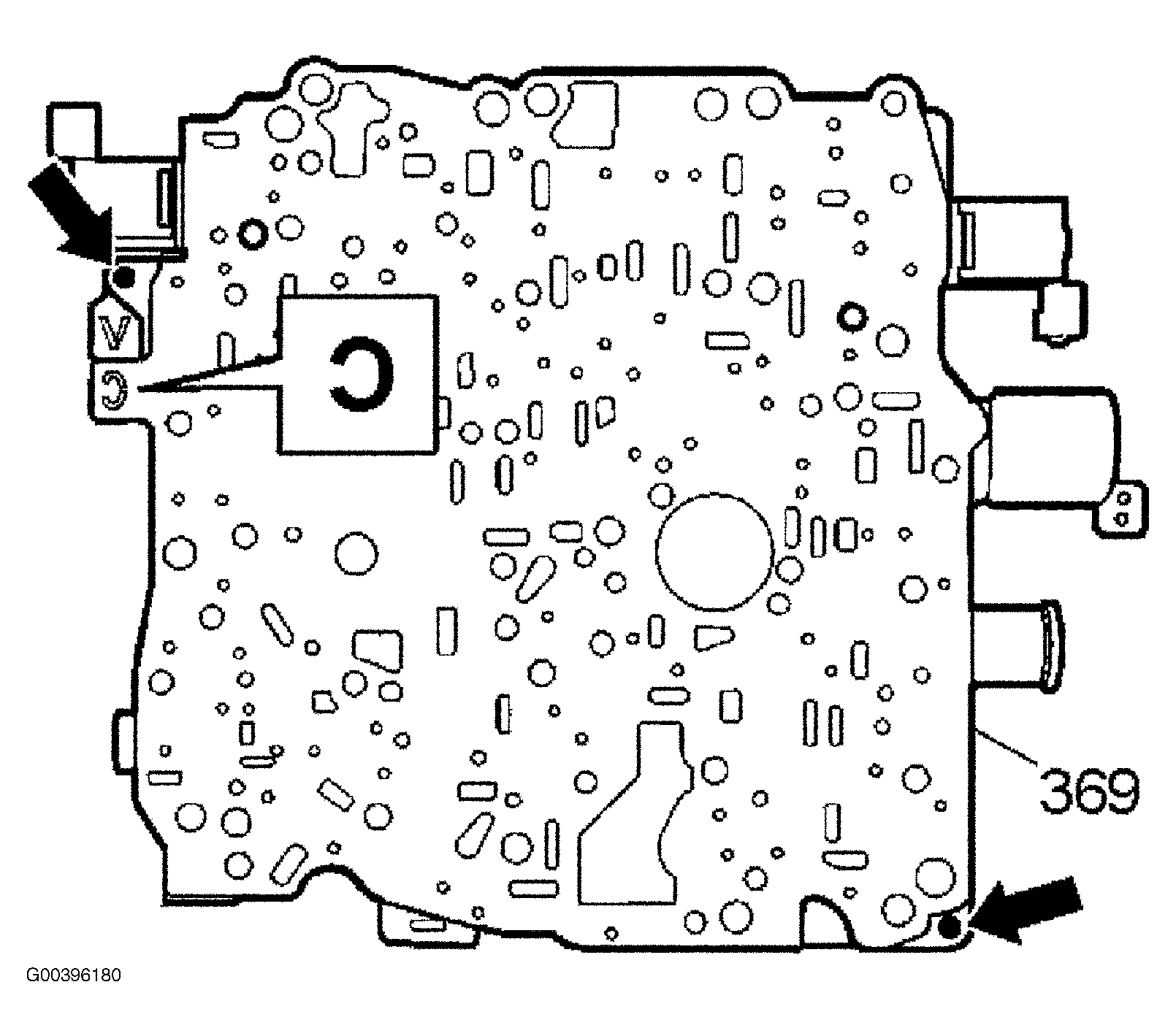

Fig 3: Identifying Distribution Plate Gasket "C"
