RTI switch: Removal

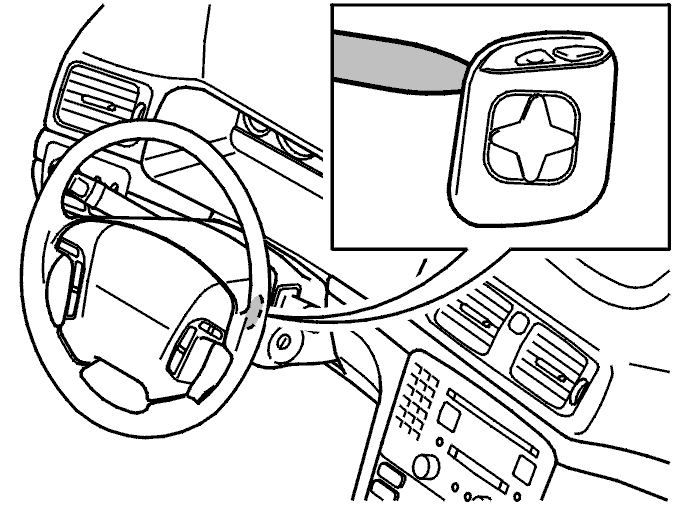

Fig 1: Identifying RTI System
GLL103196Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully detach the switch using a weatherstrip tool.

Disconnect the connector.

Install in the reverse order.
