Wastegate Valve, Adjusting: Manometer

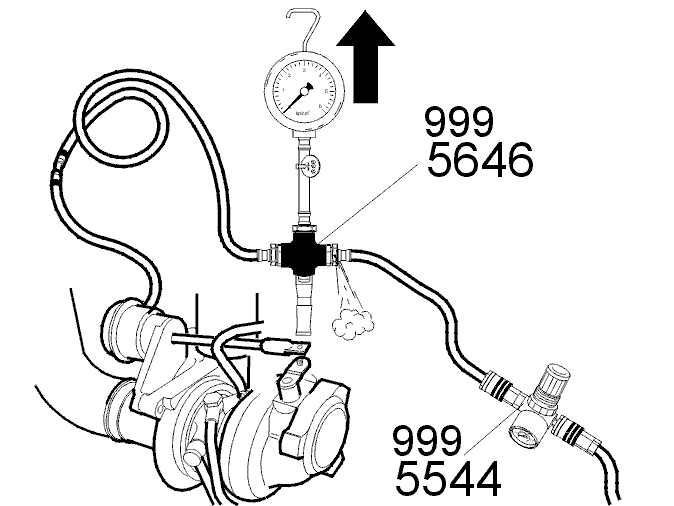

Fig 1: Identifying Manometer Must Always Hang Vertically From Its Hook When Taking Readings

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use test equipment 9995646 to measure the adjustment pressure.

The manometer must always hang vertically when taking readings. This is to ensure that the values obtained are correct.
