Installing The Mass Air Flow (MAF) Sensor

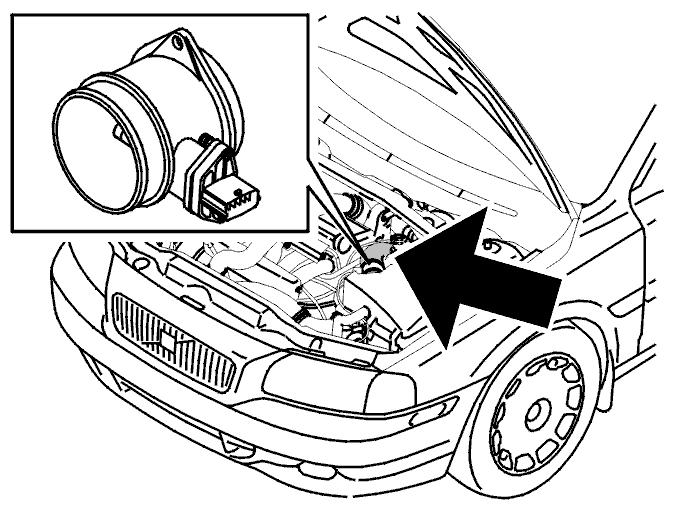

Fig 1: Locating Mass Air Flow Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Apply water to the O-ring in the air cleaner (ACL) cover to facilitate installation of the mass air flow (MAF) sensor.

Install the new mass air flow (MAF) sensor.

Press the mass air flow (MAF) sensor into place.

Install the screws. Tighten.

Install the inlet hose on the mass air flow (MAF) sensor. Tighten the hose clamp.

Press the connector for the mass air flow (MAF) sensor into place.
