Installing the phone module (PHM)

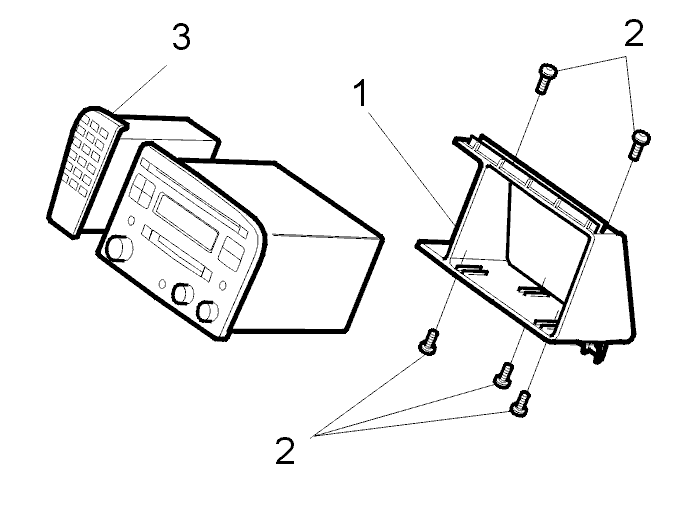

Fig 1: Identifying Phone Module, Radio And Casing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the connectors and the carphone (3)
the radio/telephone:
- For -2004, see:Radio cassette player, replacing .
- For 2005-, see:Audio unit, replacing .

CAUTION:

Ensure that the keypad snaps into the radio and frame.

NOTE:

After replacing the phone module (PHM), new software must be ordered and the unit programmed.

Without Volvo On Call:

With Volvo On Call:
