Installing the right-hand engine mounting

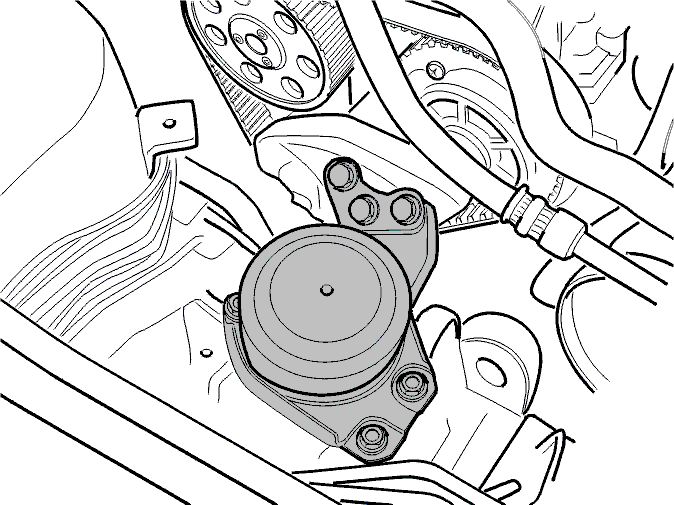

Fig 1: Installing Right Engine Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the lower timing cover.

Screw the engine mounting into place on the engine. Tighten to 67 Nm  .

Install:

• the screws on the bracket for the bodywork. Tighten to 50 Nm  .
