Removing components

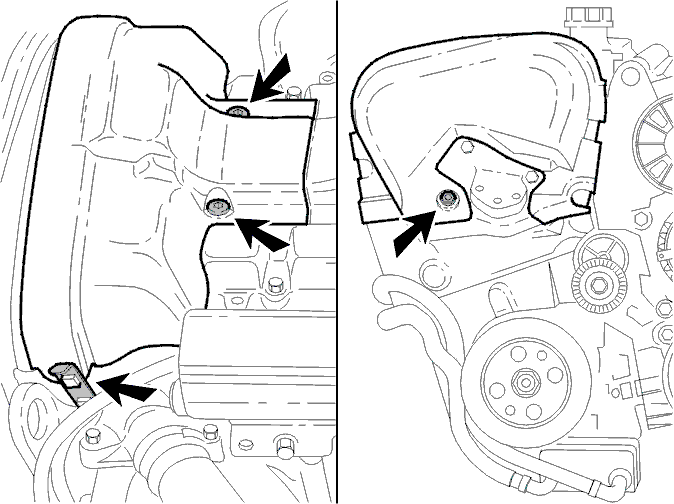

Fig 1: Removing/Installing Timing Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the cover over the injector
• the cover over the throttle body (TB)
• the upper timing cover
• the cover over the ignition coils
• front timing cover
• the inlet hose between the mass air flow (MAF) sensor and throttle body (TB)
• the auxiliaries belt.
