Disconnecting the ignition system

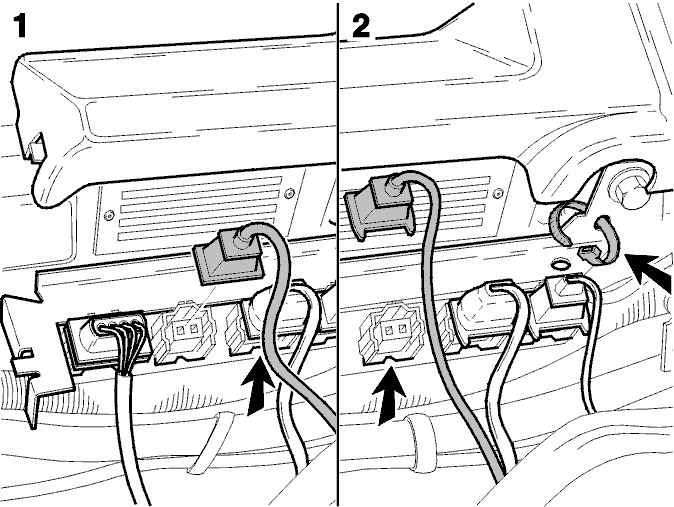

Fig 1: Disconnecting Ignition System

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• The connector from the flywheel sensor,

  turbocharged engines (1) or non turbocharged engines (2)

• the engine cover.

Remove the ignition coils and spark plugs.
