Relay In Passenger Compartment Central Electrical Unit, Replacing: Installing

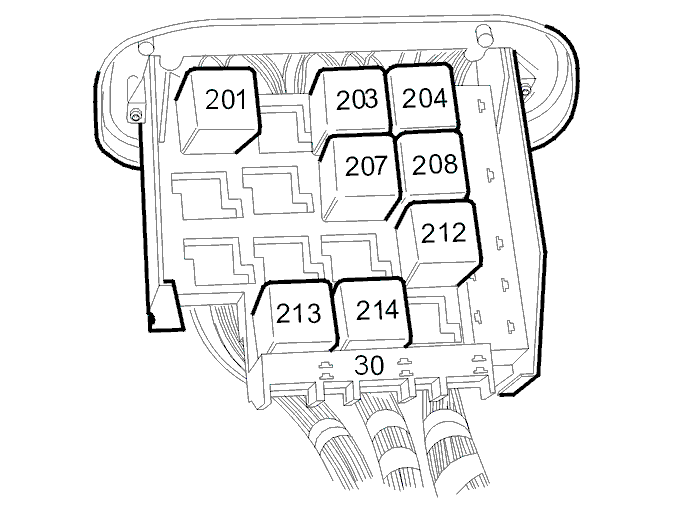

Fig 1: Identifying Relays

Courtesy of VOLVO CARS OF NORTH AMERICA.

Replace relay. Position of relays as illustrated:

Connect battery negative lead.

• Test relay function.

Install soundproofing panel and screws.

Position of relays in passenger compartment central electrical unit:

• 201 Fog lamp relay.
• 203 Intermittent windshield wiper.
• 204 Intermittent rear windshield wiper.
• 207 Exhaust temperature sensor.
• 208 Rear defogger/heated door mirrors.
• 212 Seat belt reminder/ Key reminder.
• 213 Bridge front fog lamps.
• 214 Heated rear seat.
