The painting systems basic structure

Partial painting or complete painting

In the repair instructions below, a distinction is made between partial and complete painting.

Partial painting and complete painting respectively, are carried out according to the same instructions, as it is only the size of the surface area that distinguishes the repair methods.

There are different work methods dependent on the manufacturers' various systems. Always follow the manufacturers' recommendations and never mix the different systems.

A painting system with this form of structure gives a very durable end-result and a good finish. The work should be carried out in the order stated and none of the stages should be left out.

The book follows the work method recommended by Volvo.

The most appropriate method must be determined for each individual situation.

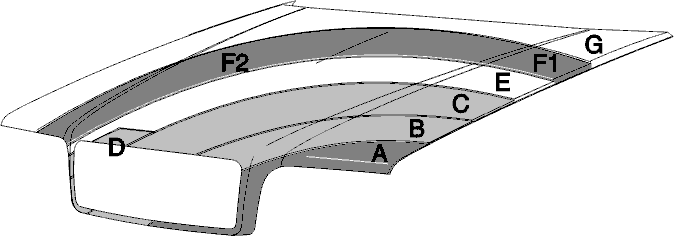

Fig 1: Identifying Factory Paint Application Process

Courtesy of VOLVO CARS OF NORTH AMERICA.

This is the way the original paint is applied in the factory (see Fig 1). For the best finish, quality and durability.

A

Panel

B

Phosphatizing

C

Ed

D

Stone chip paint (front edge of hood)

E

Filler

F

Base solid or Base metallic

G

Varnish
