Installing cigarette lighter compartment

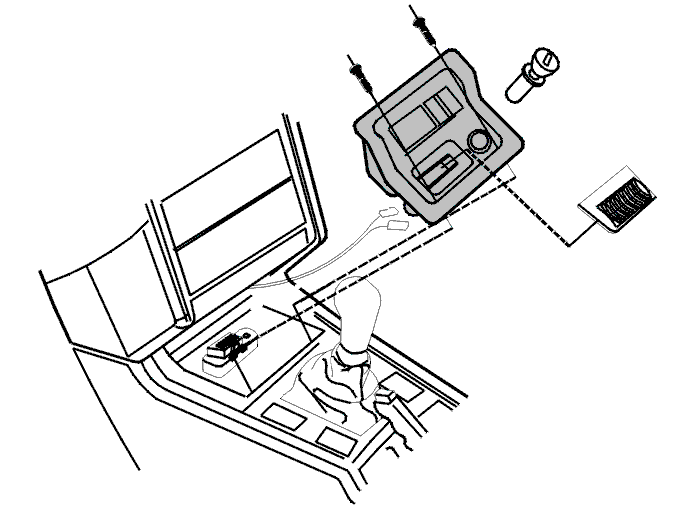

Fig 1: Identifying Cigarette Lighter Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the 2 connectors for the cigarette lighter socket and bulb holder in the cigarette lighter compartment.
• the OBD-II connector to the cigarette lighter compartment. Press in the connector and slide it to the side.
• the cigarette lighter compartment (2 Torx 20 screws).
• the OBD-II cover.
• the cigarette lighter.
