Installing wheel

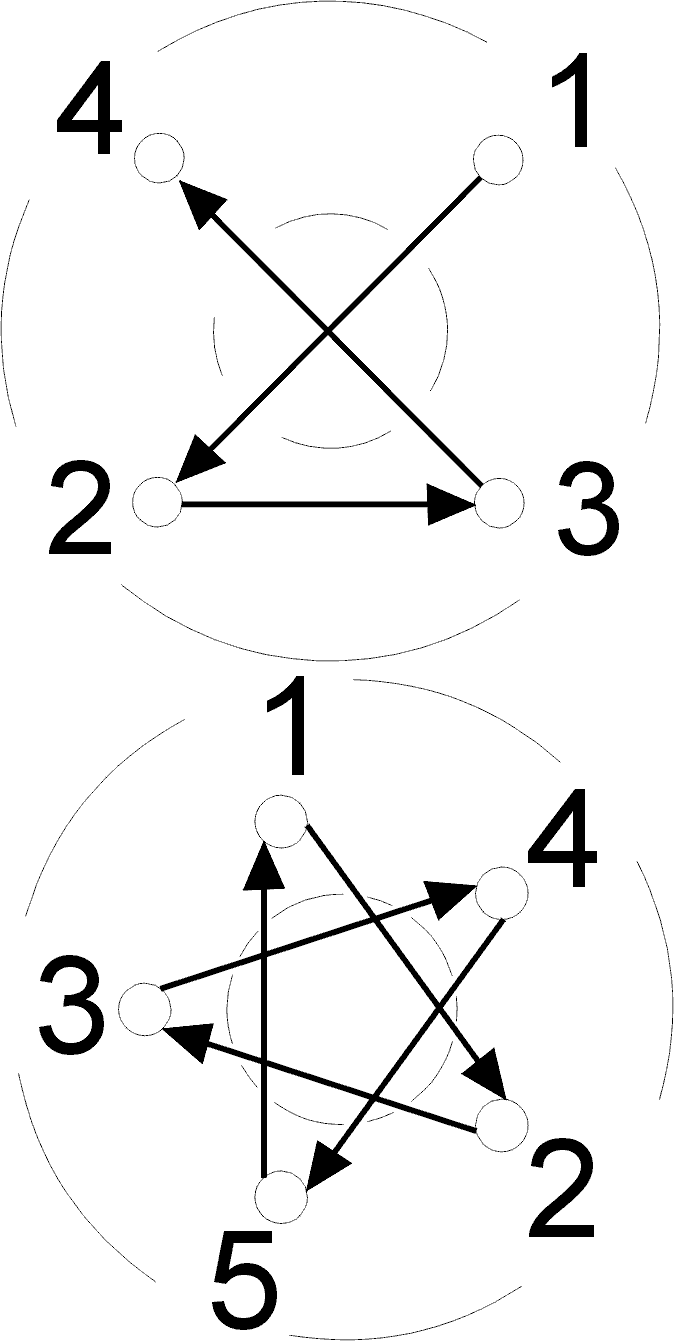

Fig 1: Crosswise Tightening

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that brake disc and rim contact surfaces are clean
Grease hub center guide for rim with anti-rust agent 116 1038-3.
Install wheel.
Install bolts hand tight. Then tighten them in star pattern to 110 Nm (80 ft.lb). If tightening with nut runner, use torque socket 1158147 .

NOTE:

Tightening bolts in star pattern to specific torque settings is important to prevent stresses in the brake disc.
