Transferring Components To New Gear Selector

1. Remove selector unit from housing. Remove spring clip, rubber grommet and gear lever arm. Tap out shaft. See Fig 1 .
2. Remove indicator panel by pressing in rear edge to release catch. Cut off locking clips and remove light strip with indicator, cover and spacers. See Fig 2 .
3. Transfer two spacers located behind light strip. Fit indicator and strip into gear selector unit. Install retaining clips. See Fig 3 .
4. Install indicator panel. Ensure Shift Lock Override button is set in place correctly and is not damaged. See Fig 4 .
5. Install gear selector unit into housing. Install shaft, spring clip and rubber grommet.

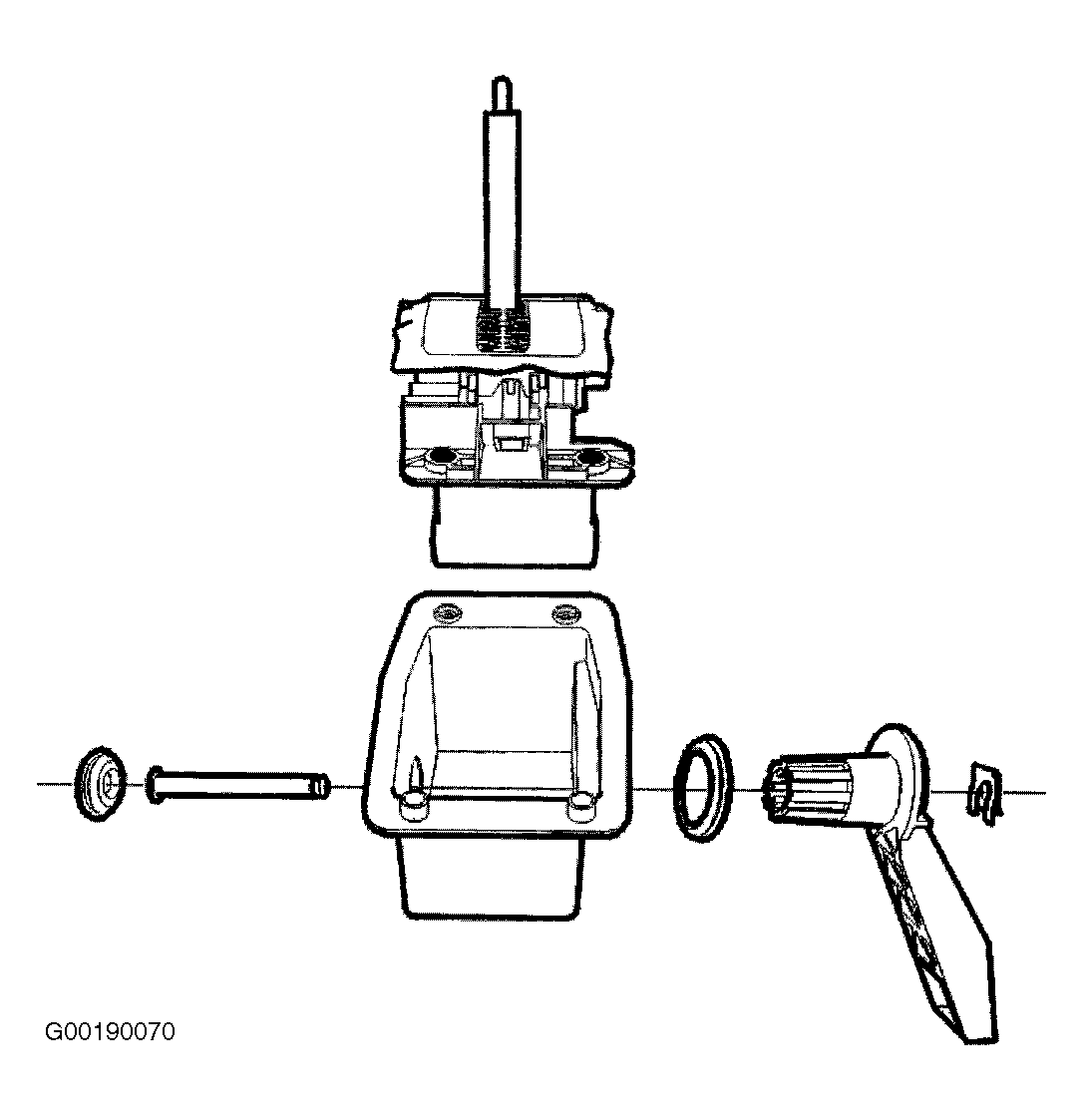

Fig 1: Identifying Gear Lever Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

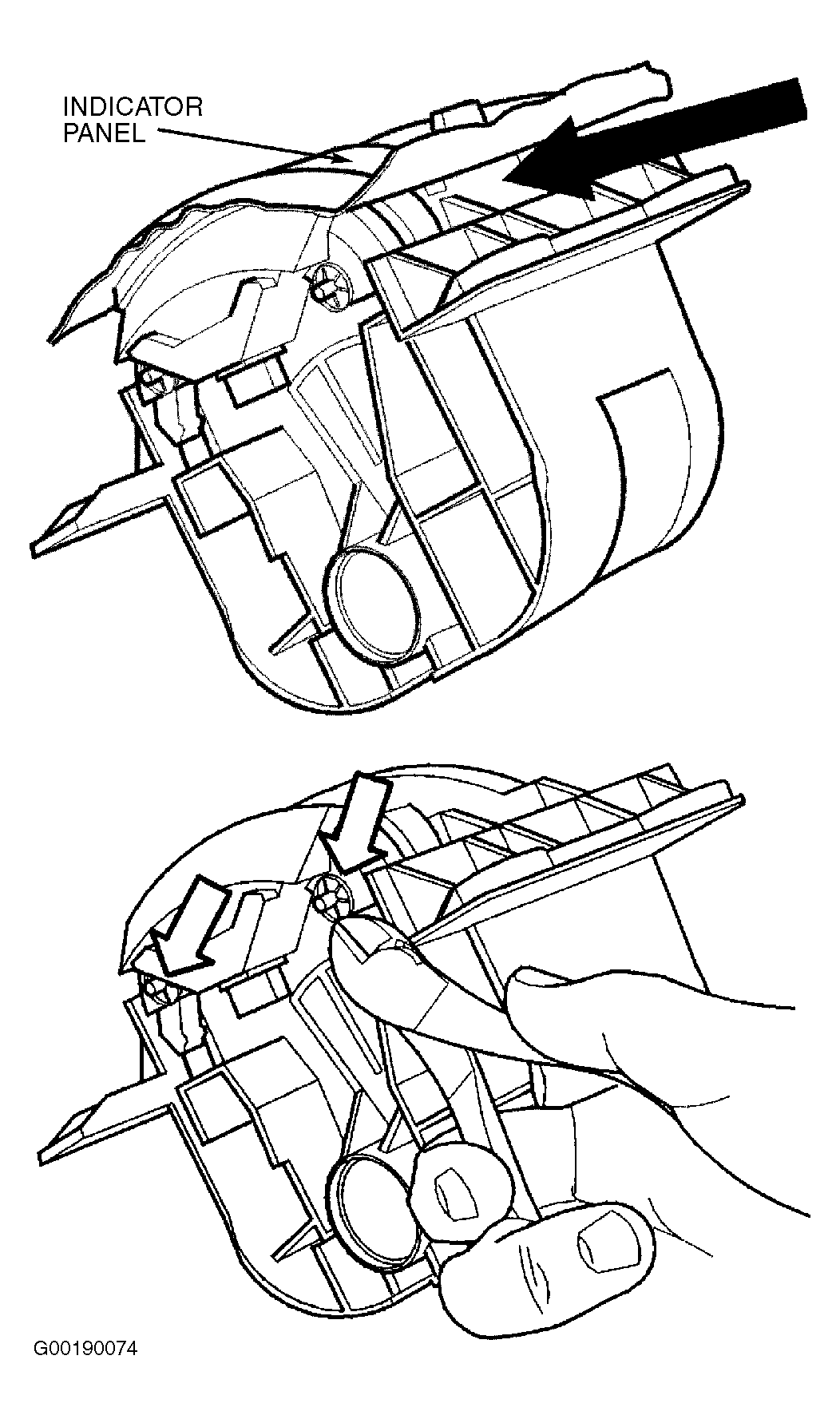

Fig 2: Removing Indicator Panel From Gear Selector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Transferring Components To New Gear Selector

Courtesy of VOLVO CARS OF NORTH AMERICA.

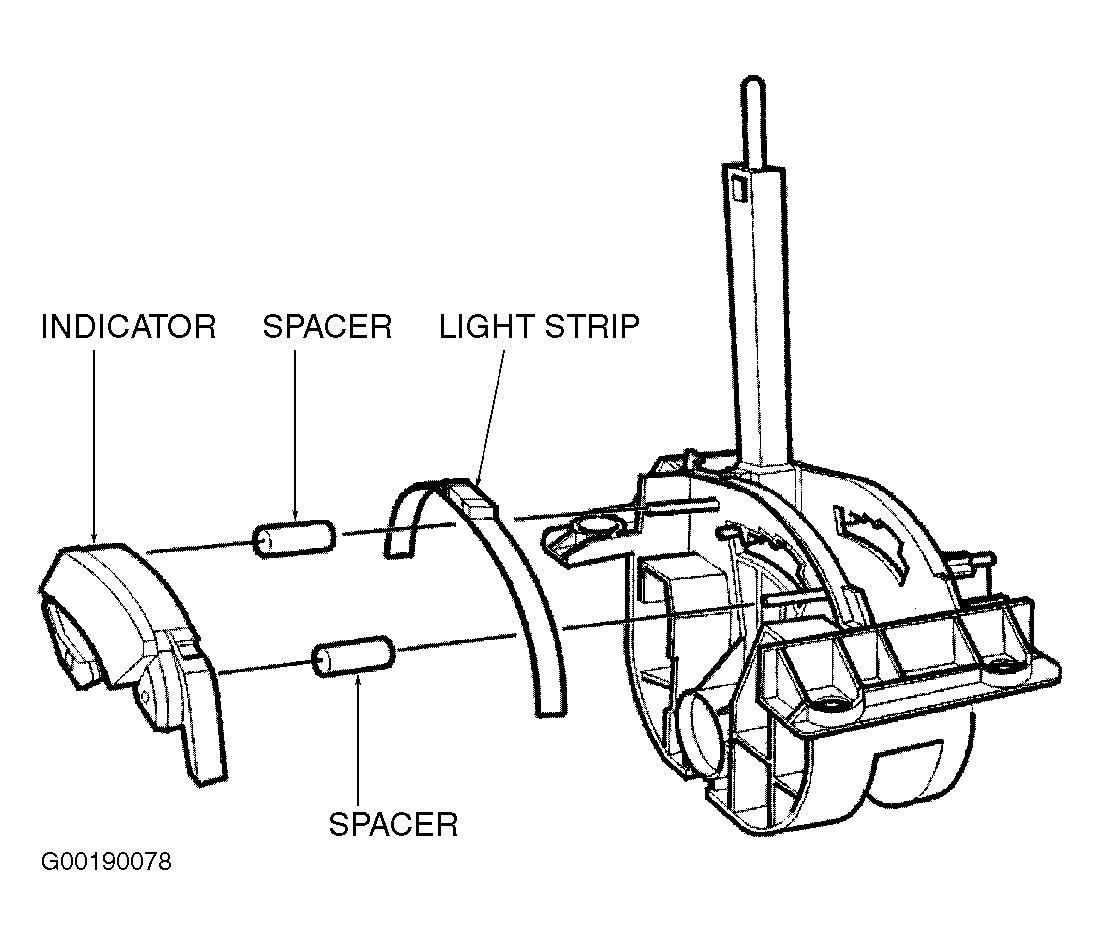

Fig 4: Installing Indicator Panel On Gear Selector

Courtesy of VOLVO CARS OF NORTH AMERICA.
