Valve Body Assembly: Notes
NOTE:

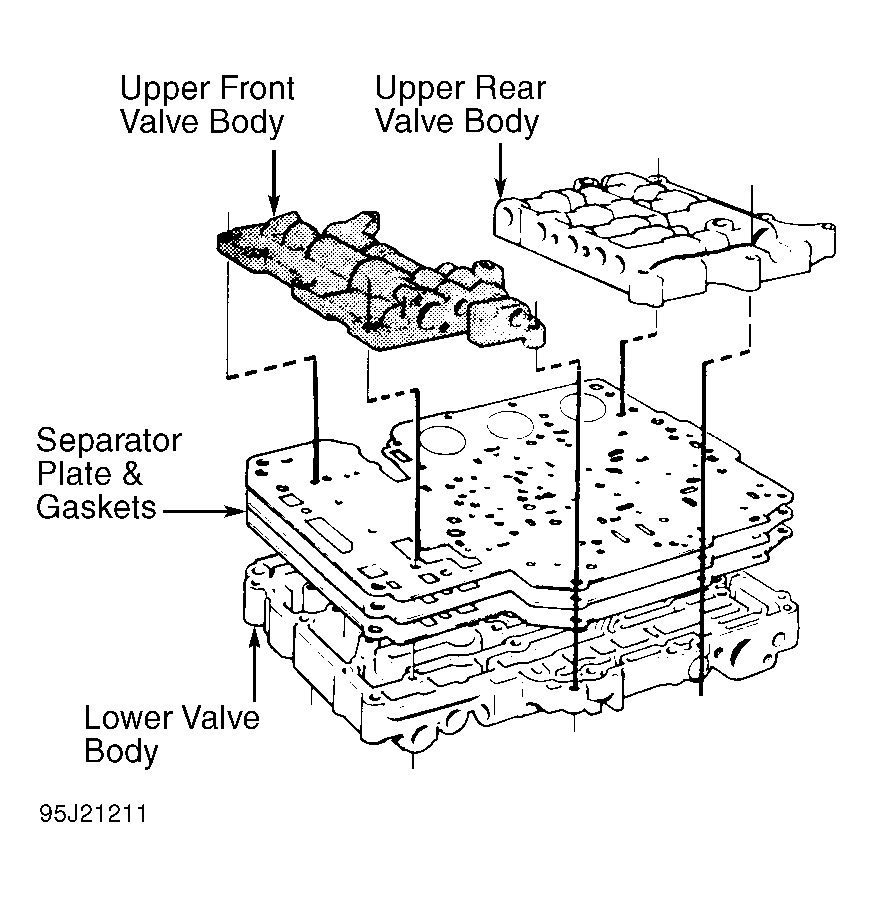

Valve body assembly consists of upper front valve body, upper rear valve body and lower valve body. See Fig 1
.
CAUTION:
When disassembling valve bodies, place components in order and mark spring locations for reassembly reference. DO NOT
use force to remove components from valve body. Note location of check ball for reassembly before removing, as check ball locations may vary.
