DTC 3-1-1: Speedometer Signal Absent: Testing

Use illustration(s) for diagnosis of DTC 3-1-1, see Fig 1 -Fig 3 .

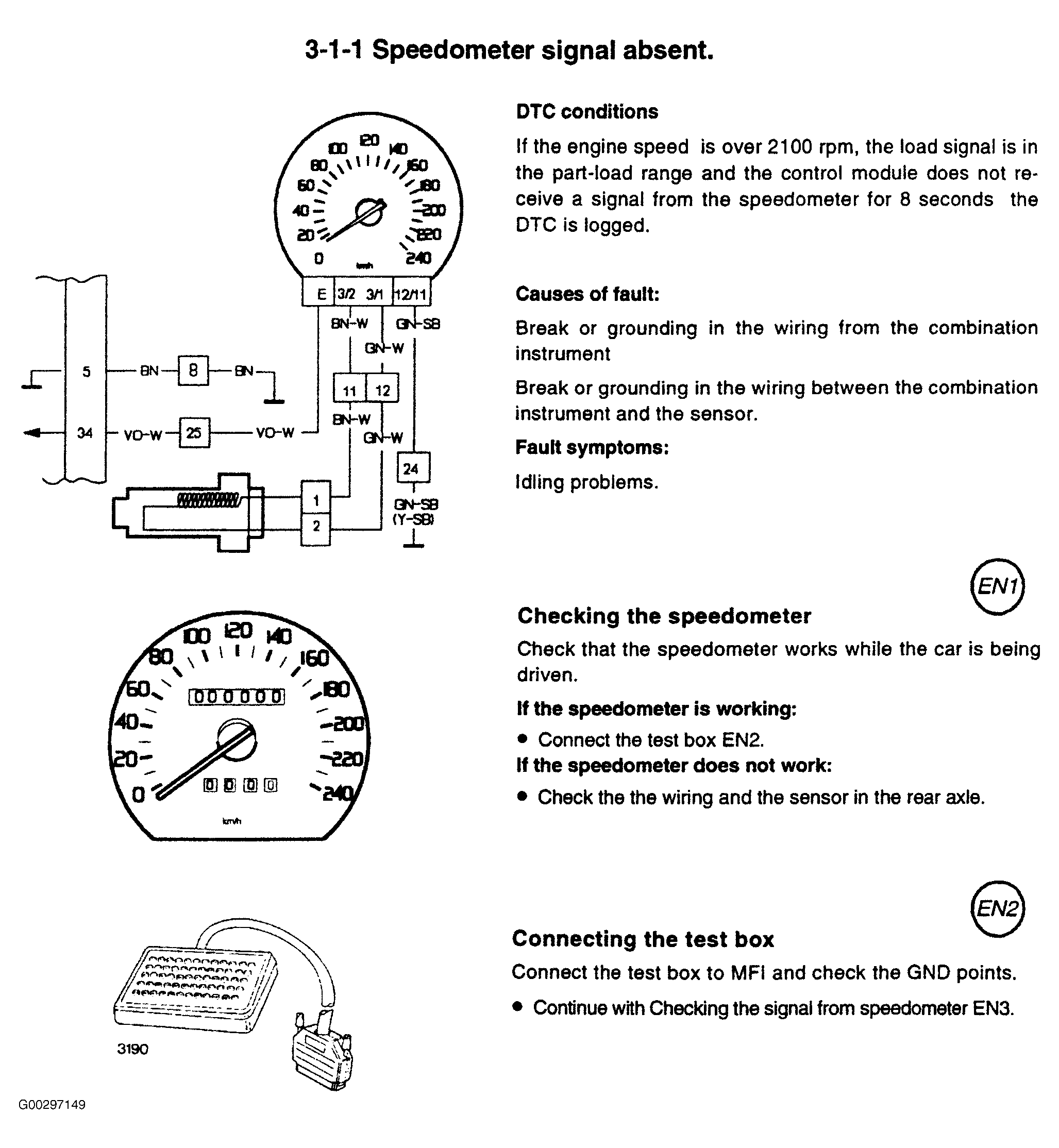

Fig 1: DTC 3-1-1: Speedometer Signal Absent (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

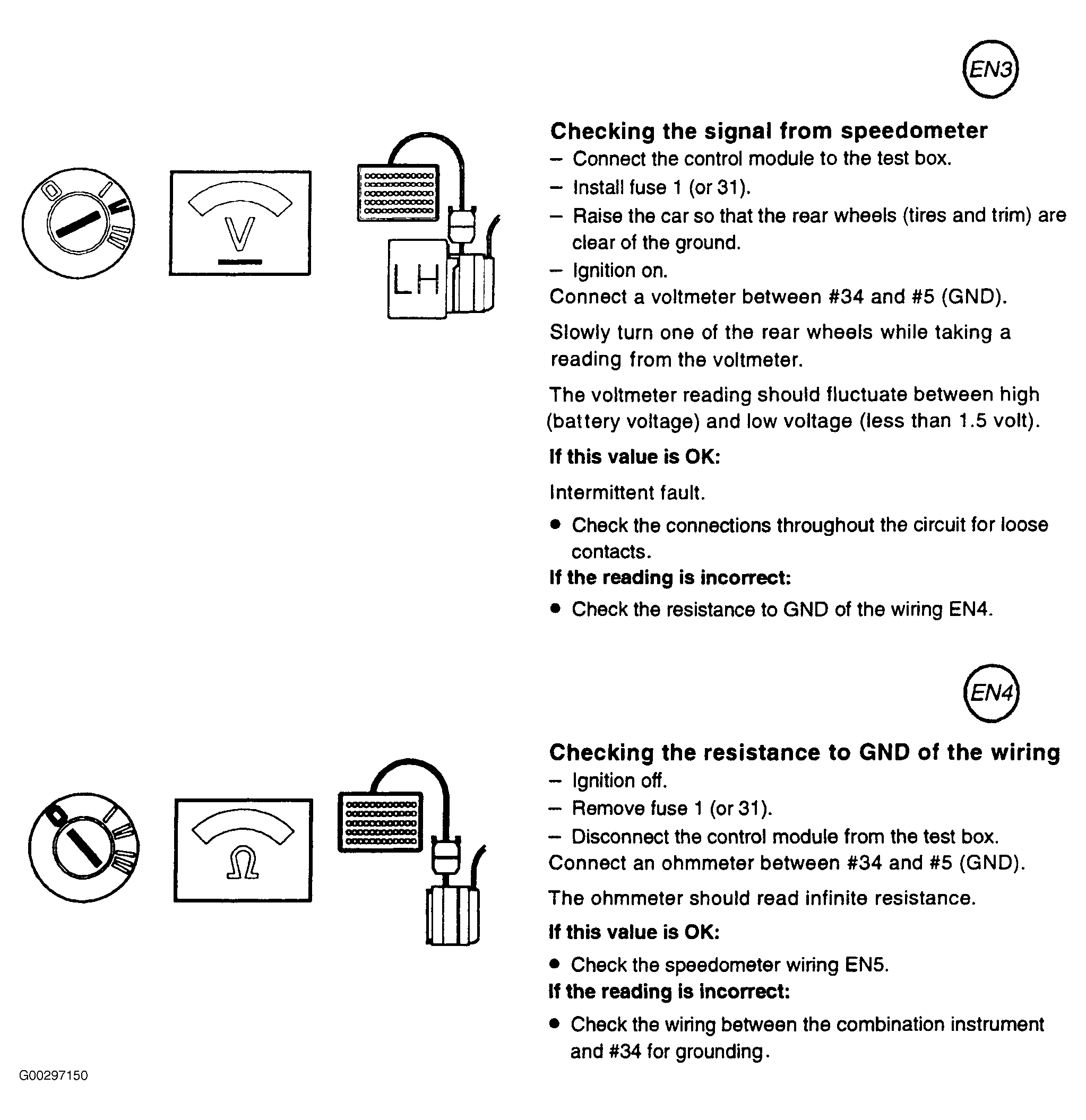

Fig 2: DTC 3-1-1: Speedometer Signal Absent (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

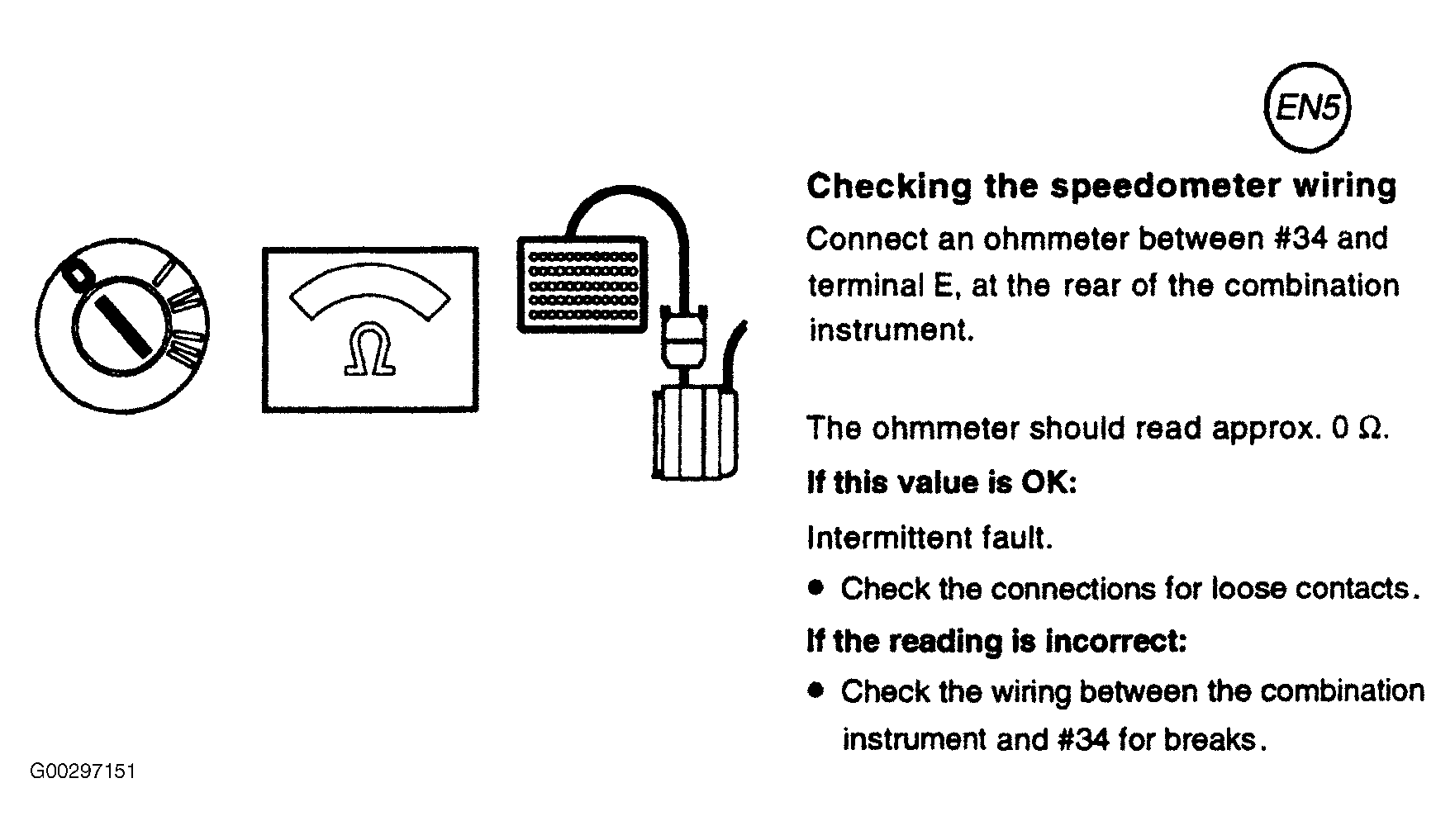

Fig 3: DTC 3-1-1: Speedometer Signal Absent (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
