DTC 2-1-4: Rpm Sensor Signal Absent Intermittently: Testing

Use illustration(s) for diagnosis of DTC 2-1-4, see Fig 1 and Fig 2 .

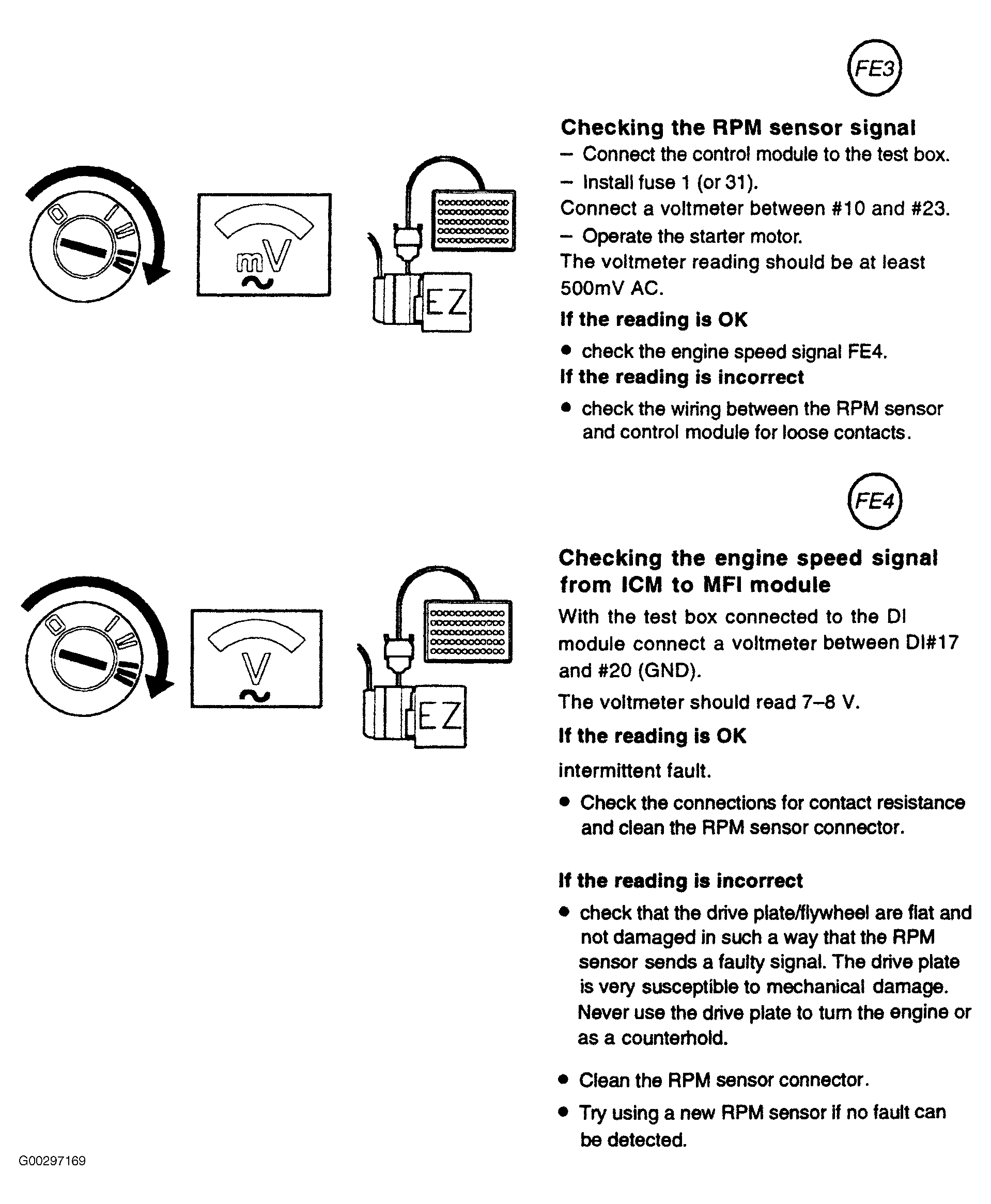

Fig 1: DTC 2-1-4: RPM Sensor Signal Absent Intermittently (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

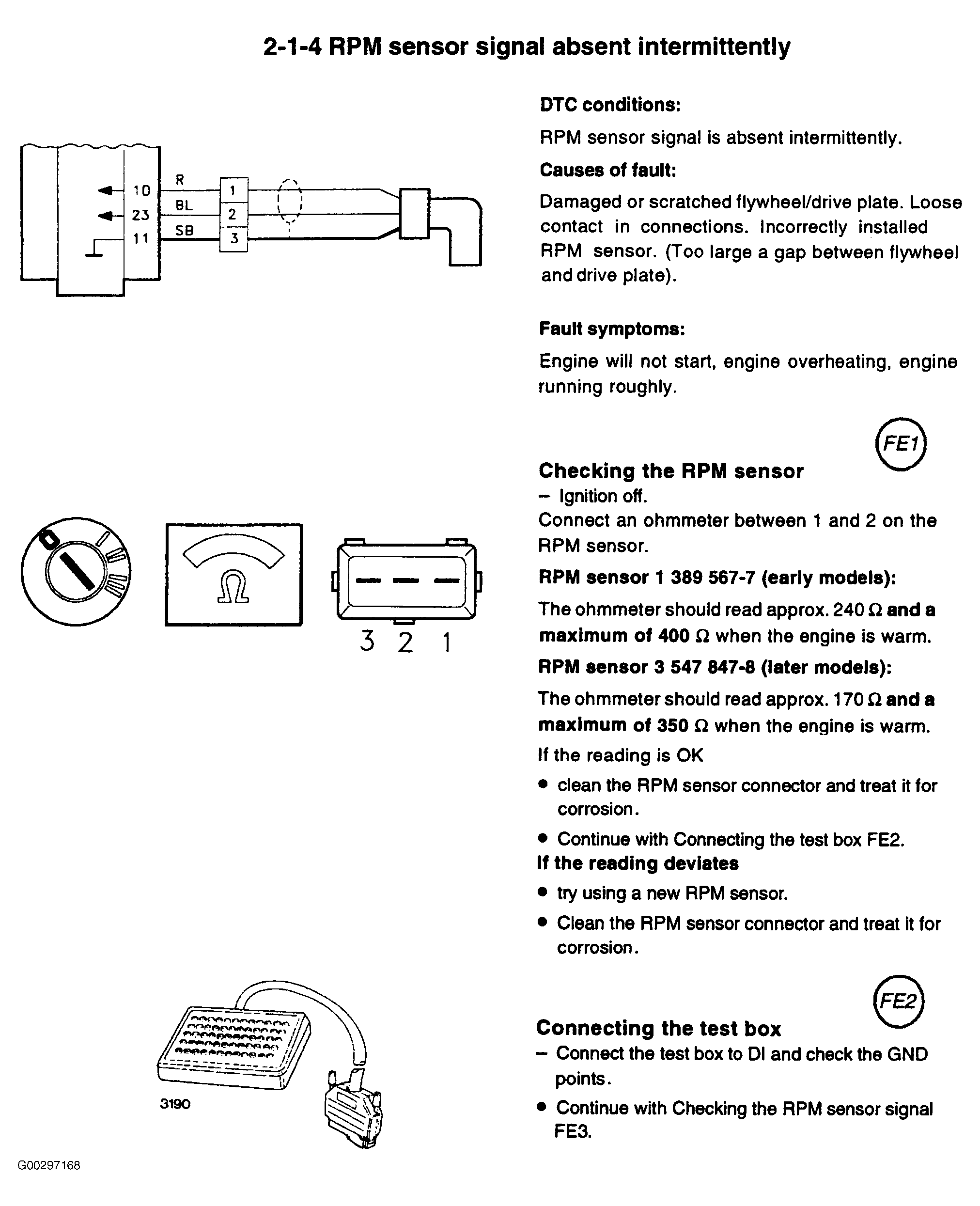

Fig 2: DTC 2-1-4: RPM Sensor Signal Absent Intermittently (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
