Basic Adjustment (1991-92)

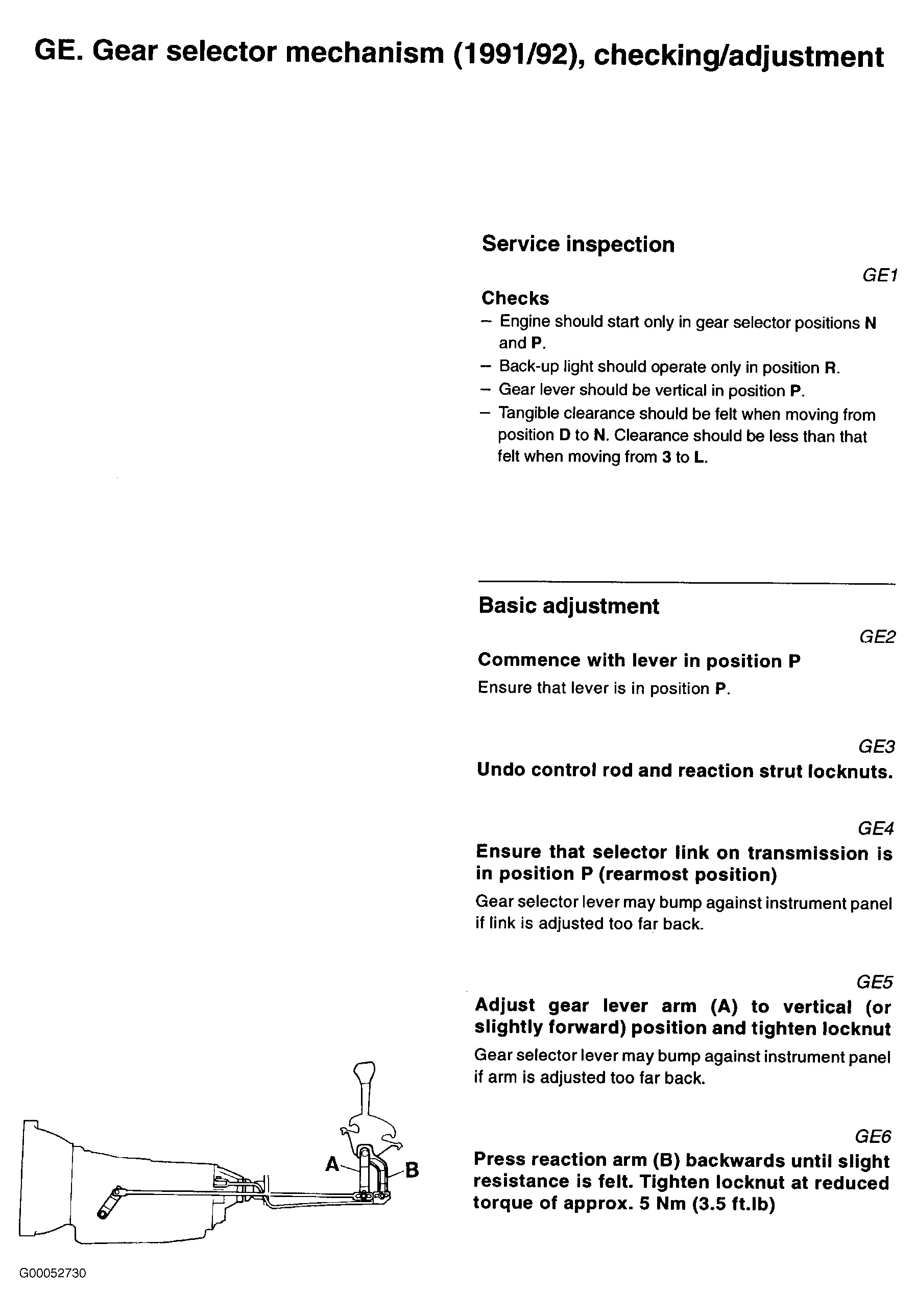

Fig 1: Gear Selector Mechanism - Steps G1-GE6

G00052730

Courtesy of VOLVO CARS OF NORTH AMERICA.
