Electronic Control Unit

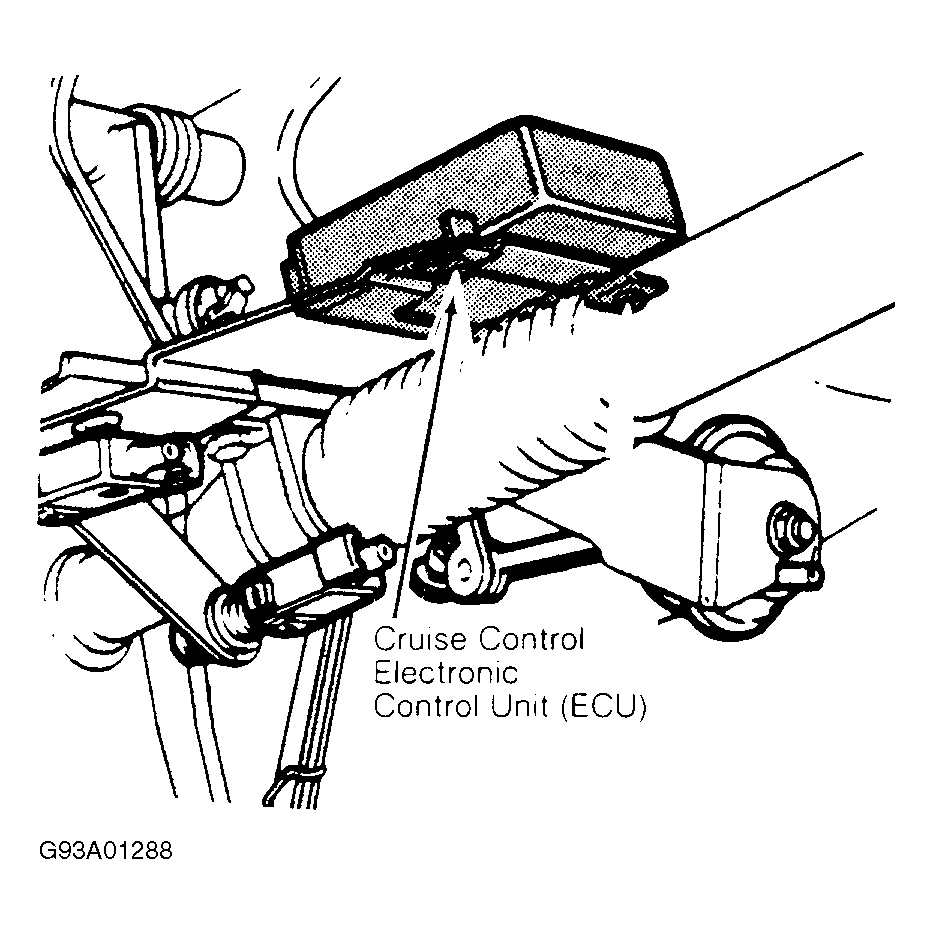

Electronic Control Unit (ECU) is located above steering column. See Figure . Remove knee bolster access panel. Remove screws behind access panels. Remove knee bolster. Fold down sound proofing. Remove ECU from bracket above steering column. To install, reverse removal procedure.
