Fuel Pump Circuit Test

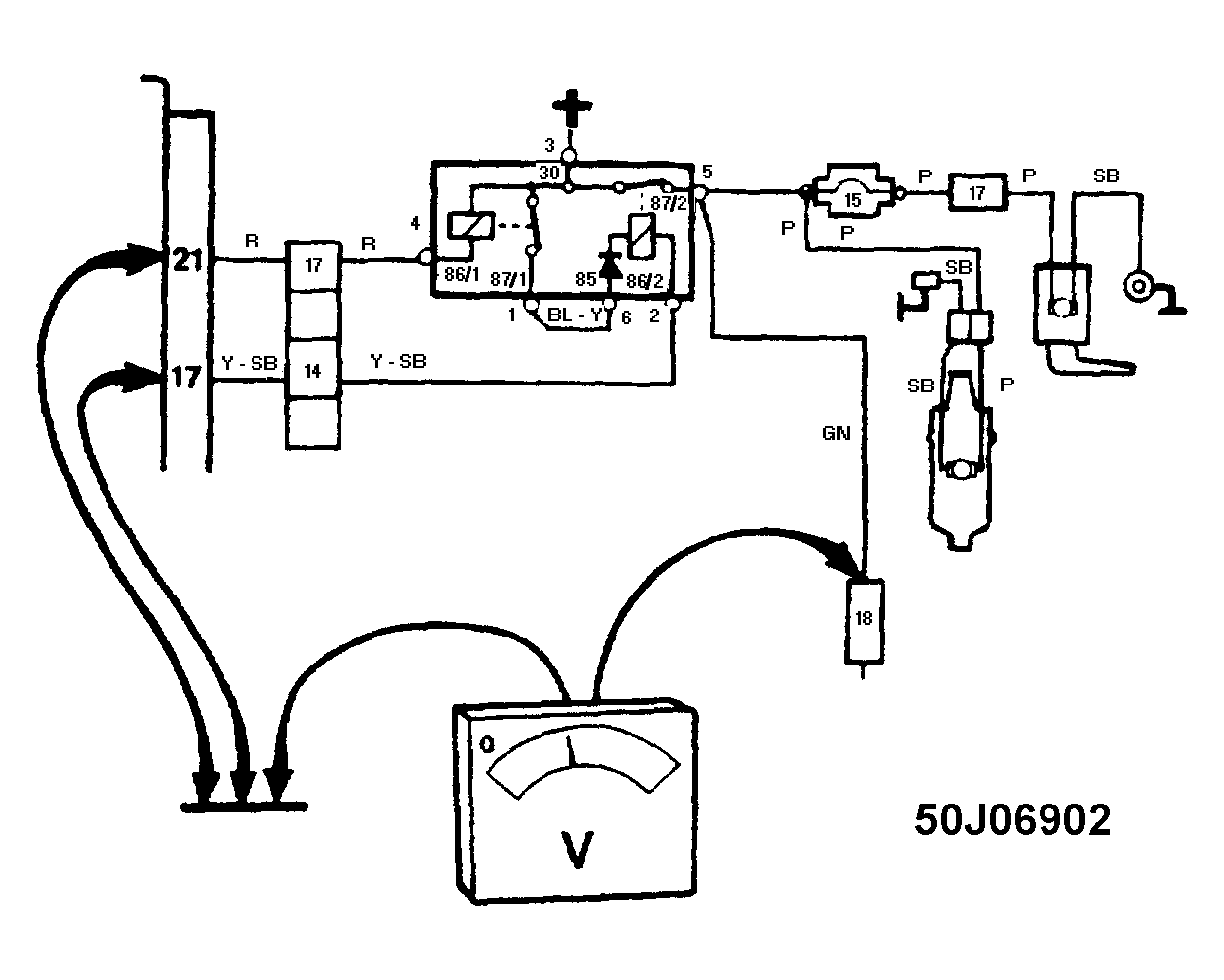

Ground terminal 21 to complete fuel injection relay circuit. Ground terminal 17. Pump relay should activate fuel pumps and pumps should start operating. Connect voltmeter between ground and terminal 18 in 20-pole connector, next to right post. Meter should show battery voltage. Disconnect ground leads.
