Component Overview

WARNING: This page is about a different car, the 2025 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

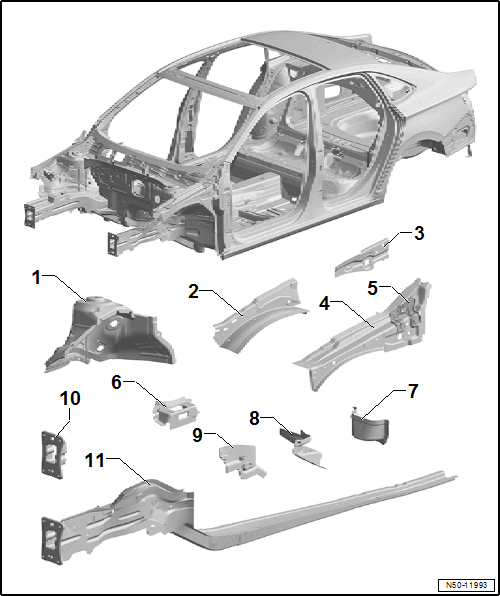

Fig 1: Front Body Components And Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Wheel Housing
- Replacing. Refer to FRONT WHEEL HOUSING, REPLACING .
- Replacing the partial section. Refer to FRONT WHEEL HOUSING, REPLACING, PARTIAL SECTION .
Upper Inner Wheel Housing Longitudinal Member
- Replacing. Refer to INNER UPPER WHEEL HOUSING LONGITUDINAL MEMBER, REPLACING .
Doppler
- Use when replacing right inner upper wheel housing longitudinal member
Upper Wheel Housing Longitudinal Member
- Replacing. Refer to UPPER WHEEL HOUSING LONGITUDINAL MEMBER, REPLACING .
Hood Hinge Reinforcement
- Replacing. Refer to HOOD HINGE REINFORCEMENT, REPLACING .
Mounting Bracket (Right)
- Replacing. Refer to RIGHT BRACKET, REPLACING .
End Plate
- Use when replacing the front longitudinal member. Refer to FRONT LONGITUDINAL MEMBER, REPLACING .
- Use when replacing the subframe retaining bracket. Refer to SUBFRAME RETAINING BRACKET, REPLACING .
Longitudinal Member Corner Reinforcement
- Use when replacing the front longitudinal member. Refer to FRONT LONGITUDINAL MEMBER, REPLACING .
- Use when replacing the retaining bracket for the subframe. Refer to SUBFRAME RETAINING BRACKET, REPLACING .
Subframe Retaining Bracket
- Replacing. Refer to SUBFRAME RETAINING BRACKET, REPLACING .
- Threads on Subframe Fastener, Servicing. Refer to THREADS ON SUBFRAME FASTENER, SERVICING .
Front Longitudinal Member Cross Panel
- Replacing. Refer to FRONT LONGITUDINAL MEMBER CROSS PANEL, REPLACING .
Front Longitudinal Member
- Replacing. Refer to FRONT LONGITUDINAL MEMBER, REPLACING .
- Replace the left partial section. Refer to FRONT LONGITUDINAL MEMBER, REPLACING, LEFT PARTIAL SECTION .
- Replace the right partial section. Refer to FRONT LONGITUDINAL MEMBER, REPLACING, RIGHT PARTIAL SECTION .
