Front Floor Assembly

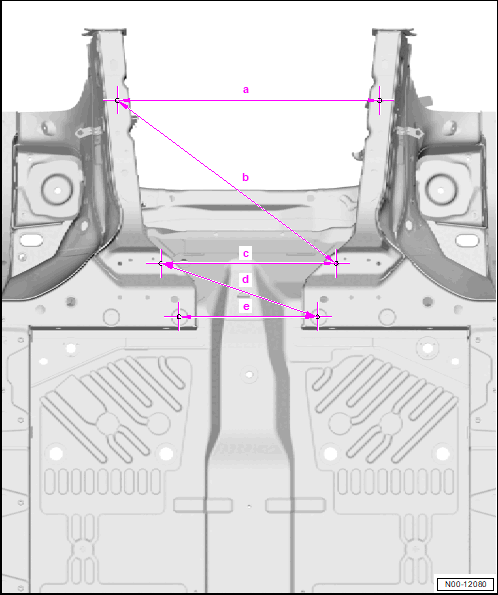

Fig 1: Floor Assembly Body Dimension Measurement Points
GWWN00-12080Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a - 791 mm ± 2.0 mm
  2. b - 854 mm ± 2.0 mm
  3. c - 530 mm ± 2.0 mm
  4. d - 505 mm ± 2.0 mm
  5. e - 419 mm ± 2.0 mm
