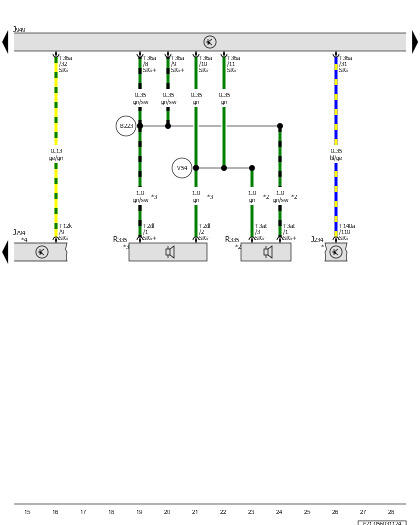

Airbag Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

R335

Emergency Call Module Speaker

T2dl

2-Pin Connector, Black

T3at

3-Pin Connector, Black

T12k

12-Pin Connector, Gray

T36a

36-Pin Connector, Black

T140a

140-Pin Connector, Yellow

B223

Navigation System/Telephone Connection (in Interior Wiring Harness)

V54

Telephone Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Airbag Wiring Diagram

*2

For Vehicles Without Sound System

*3

For Vehicles with Sound System

*4

Refer to the Applicable Multimedia System Wiring Diagram
