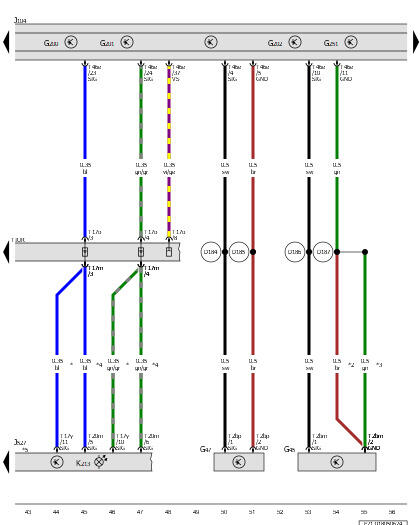

Right Front Abs Wheel Speed Sensor, Left Front Abs Wheel Speed Sensor, Abs Control Module, Steering Column Electronics Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G45

Right Front ABS Wheel Speed Sensor

G47

Left Front ABS Wheel Speed Sensor

G200

Transverse Acceleration Sensor

G201

Brake Pressure Sensor 1

G202

Rotation Rate Sensor

G251

Longitudinal Acceleration Sensor

J104

ABS Control Module

J527

Steering Column Electronics Control Module

K213

Electromechanical Parking Brake Indicator Lamp

T2bm

2-Pin Connector, Black

T2bp

2-Pin Connector, Black

T17m

17-Pin Connector, Black

T17o

17-Pin Connector, Black

T17y

17-Pin Connector, Yellow

T20m

20-Pin Connector, Brown

T46e

46-Pin Connector, Black

TIUR

Coupling Point in Interior, Bottom Right

D184

Left Front Speed Sensor Positive Connection (in Engine/Motor Compartment Wiring Harness)

D185

Left Front Speed Sensor Negative Connection (in Engine/Motor Compartment Wiring Harness)

D186

Right Front Speed Sensor Positive Connection (in Engine/Motor Compartment Wiring Harness)

D187

Right Front Speed Sensor Negative Connection (in Engine/Motor Compartment Wiring Harness)

*

For Vehicles Without UNECE Cyber Security

*2

For Vehicles with Adaptive Chassis

*3

For Vehicles Without Adaptive Chassis

*4

For Vehicles with UNECE Cyber Security

*5

Refer to Applicable Steering Column Electronics Wiring Diagram
