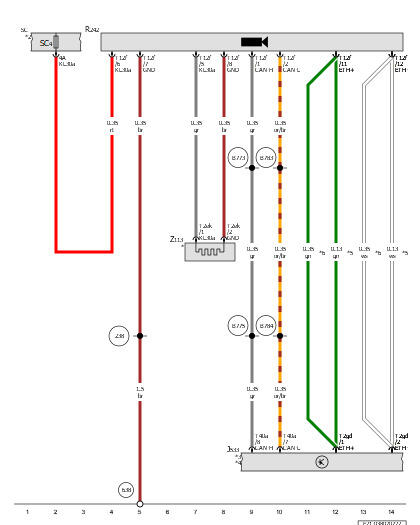

Data Bus On Board Diagnostic Interface, Driver Assistance Systems Front Camera, Fuse Panel C, Window Defogger For Front Sensor System
J533
Data Bus on Board Diagnostic Interface
R242
Driver Assistance Systems Front Camera
SC
Fuse Panel C
SC4
Fuse 4 (On Fuse Panel C)
T2ek
2-Pin Connector, Black
T2gd
2-Pin Connector, White
T12f
12-Pin Connector, Black
T40a
40-Pin Connector, Black
Z113
Window Defogger for Front Sensor System
238
Ground Connection 1 (in Interior Wiring Harness)
638
Ground Connection on Right A-Pillar
B773
Suspension Sensor CAN Bus High Connection 2 (in Main Wiring Harness)
B775
Suspension Sensor CAN Bus High Connection 4 (in Main Wiring Harness)
B783
Suspension Sensor CAN Bus Low Connection 2 (in Main Wiring Harness)
B784
Suspension Sensor CAN Bus Low Connection 3 (in Main Wiring Harness)
*
Pre-Wired Component
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Refer to the Applicable Suspension CAN Bus Network Data Bus Wiring Diagram
*4
Refer to the Applicable Ethernet Network Data Bus Wiring Diagram
*5
Through June 2022
*6
From June 2022
