Center Body Underbody Protection
NOTE:
The underbody protection (stone chip protection) is to be repaired according to its original conditions in appearance and layer thickness.
Water drain holes must stay clear.
All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.

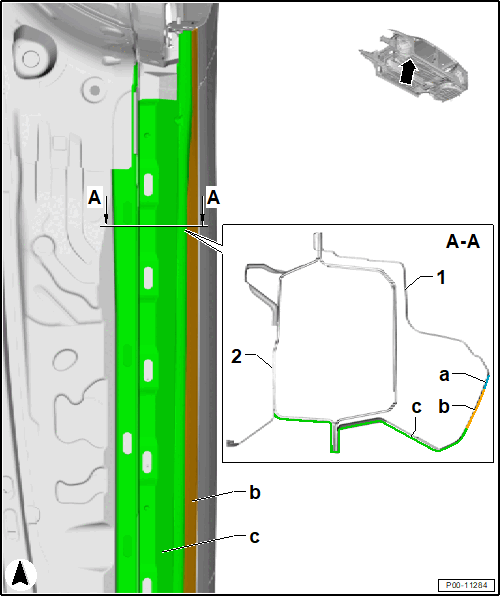

Side sill with sectional view underbody protection
- Underbody Protection
- Layer Thickness 0.3 mm
- Underbody Protection
- Layer Thickness 0.5 mm
- Tapering off to 0.3 mm permitted
- Underbody Protection
- Layer Thickness 1.2 mm
- Side Panel
- Outer
- Sill
- Inner
