Outside Air Temperature Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front bumper cover. Refer to FRONT BUMPER .

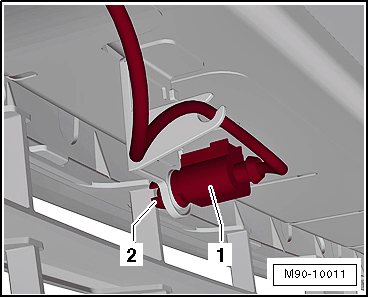

-- Release and disconnect the connector -1-.

GWWM90-10011Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Outside Air Temperature Sensor -G17- -2- from the retainer on the impact member.
