Component Location Overview - Components Outside Of Vehicle Interior

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

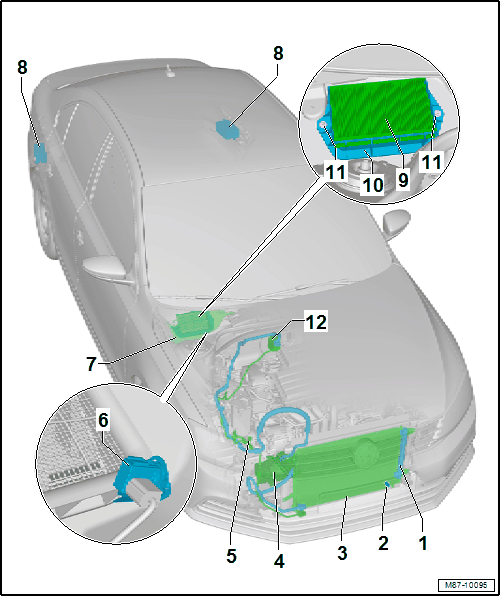

Desiccant Bag/Dryer Cartridge
- Overview. Refer to SYSTEM OVERVIEW - REFRIGERANT CIRCUIT .
- Removing and installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
Outside Air Temperature Sensor -G17-
- Checking via the Vehicle Electrical System Control Module -J519-. Refer to Vehicle Diagnostic Tester.
- Removing and installing. Refer to Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING .
Condenser
- Overview. Refer to OVERVIEW - CONDENSER .
- Removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
A/C Compressor
- Overview. Refer to OVERVIEW - A/C COMPRESSOR POWER UNIT .
- Removing and installing from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
- Removing and installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
Refrigerant Lines
- System Overview - Refrigerant Circuit. Refer to SYSTEM OVERVIEW - REFRIGERANT CIRCUIT .
- Refrigerant Line from Condenser to Evaporator, Removing and installing. Refer to REFRIGERANT LINE FROM CONDENSER TO EVAPORATOR, REMOVING AND INSTALLING .
- Refrigerant Line from Condenser to A/C Compressor, Removing and installing. Refer to REFRIGERANT LINE FROM CONDENSER TO A/C COMPRESSOR, REMOVING AND INSTALLING .
- Refrigerant Line from A/C Compressor to Evaporator, Removing and installing. Refer to REFRIGERANT LINE FROM A/C COMPRESSOR TO EVAPORATOR, REMOVING AND INSTALLING .
Air Quality Sensor -G238-
- Only for vehicles with Climatronic.
- Checking. Refer to Vehicle Diagnostic Tester.
- Function mode. Refer to Air Quality Sensor -G238- FUNCTION .
- Removing and installing. Refer to Air Quality Sensor -G238-, REMOVING AND INSTALLING .
Fresh Air Intake Cover
- Removing and installing. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
Vehicle Interior Forced Air Extraction
- Checking using the Vehicle Diagnostic Tester. Refer to VEHICLE INTERIOR FORCED AIR EXTRACTION, CHECKING .
- Removing and installing. Refer to VEHICLE INTERIOR FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
Filter Element for Fresh Air Intake
- Optional.
- Removing and installing. Refer to FRESH AIR INTAKE FILTER ELEMENT, REMOVING AND INSTALLING .
Fresh Air Intake
- Removing and installing. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
Nuts
- 2.5 Nm
Expansion Valve
- Tightening specification. Refer to SYSTEM OVERVIEW - REFRIGERANT CIRCUIT .
- Removing and installing. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
