Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to FRONT BUMPER .

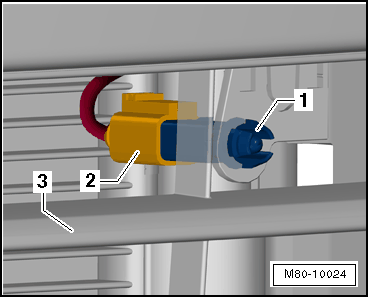

-- Reach through the front bumper air grille -3- and unclip the Outside Air Temperature Sensor -G17- -1- from the retainer.

GWWM80-10024Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Outside Air Temperature Sensor -G17- -1- from the air grille -3-.

-- Disconnect the connector -2- on the Outside Air Temperature Sensor -G17- -1-.
