Home >> Volkswagen >> 2021 >> Jetta R-Line, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Front Doors, Central Locking System >> 57 Front Doors, Central Locking System >> Door Components >> Inner Window Shaft Strip, Removing And Installing >> Removing

Inner Window Shaft Strip, Removing And Installing: Removing

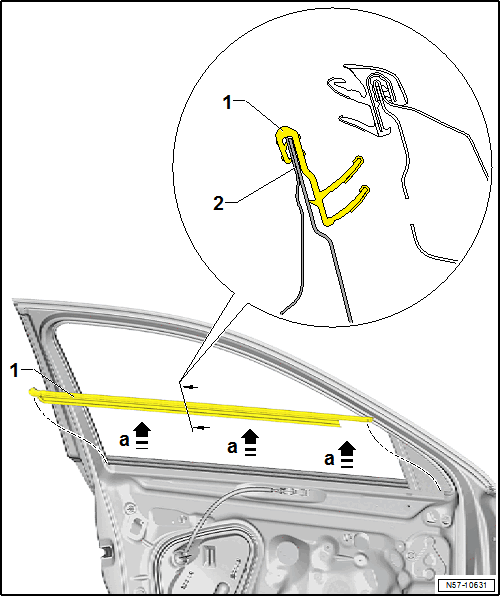

GWWN57-10631Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Pry the inner window shaft strip -1- evenly and without bending off of the door flange -2- in direction of -arrow a-.
