Ignition Key Cap, Removing And Installing, Electronic Ignition Lock: Installing

NOTE:

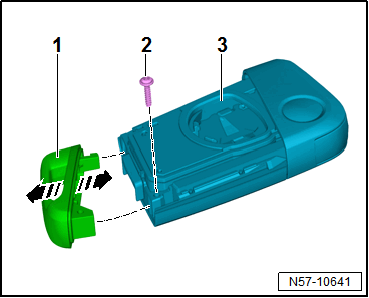

The threads for a new cap are cut in by the screw -2-.

-- Push the cap -1- on the radio-frequency unit -3- in direction of the -arrow-.

GWWN57-10641Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolt -2-.

-- Push on the battery compartment cover.
