Right FOOTWELL Vent Temperature Sensor G262, Removing And Installing: Removing

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

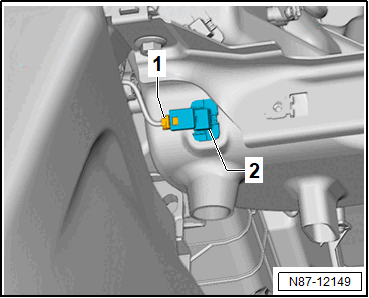

GWWN87-12149Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use the commercially available plastic wedge to remove the Right Footwell Vent Temperature Sensor -G262- -2-.
