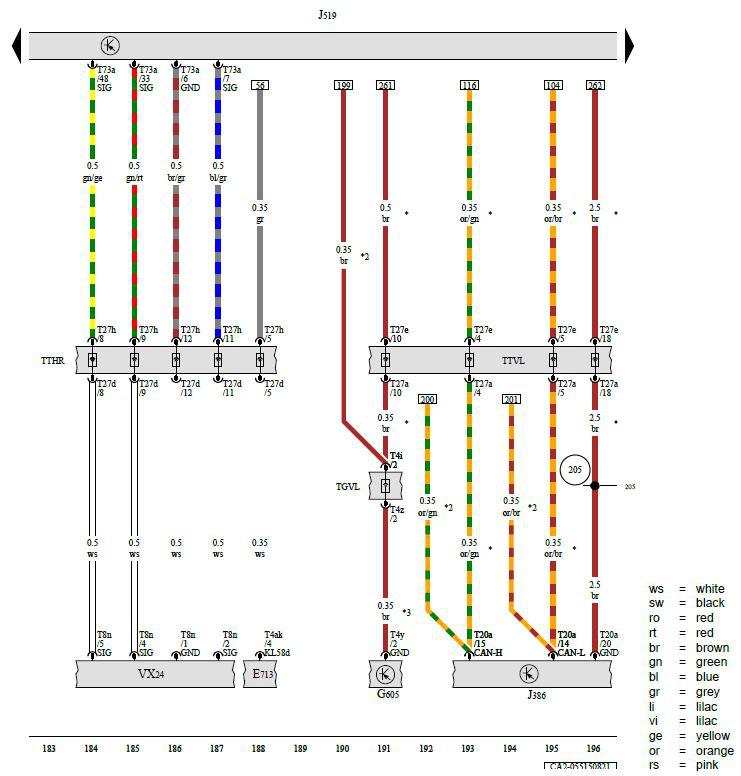

Left Front Exterior Door Handle Touch Sensor, Vehicle Electrical System Control Module
E713 - Passenger Side Rear Power Window Button
G605 - Left Front Exterior Door Handle Touch Sensor
J386 - Driver Door Control Module
J519 - Vehicle Electrical System Control Module
T4ak - 4-Pin Connector, Black
T4i - 4-Pin Connector, Black
T4y - 4-Pin Connector, Black
T4z - 4-Pin Connector, Black
T8n - 8-Pin Connector, Black
T20a - 20-Pin Connector, White
T27a - 27-Pin Connector, Black
T27d - 27-Pin Connector, Black
T27e - 27-Pin Connector, Black
T27h - 27-Pin Connector, Black
T73a - 73-Pin Connector, Black
TGVL - Left Front Exterior Door Handle Coupling Point
TTHR - Right Rear Door Coupling Point
TTVL - Left Front Door Coupling Point
VX24 - Right Rear Door Lock Unit
205 - Ground Connection (in Driver Door Wiring Harness)
* - For Vehicles without Peripheral Camera
*2 - For Vehicles with Peripheral Camera
*3 - The Color of the Wires Depends on Vehicle Equipment
