Vehicle Electrical System Control Module, Fuse Panel C

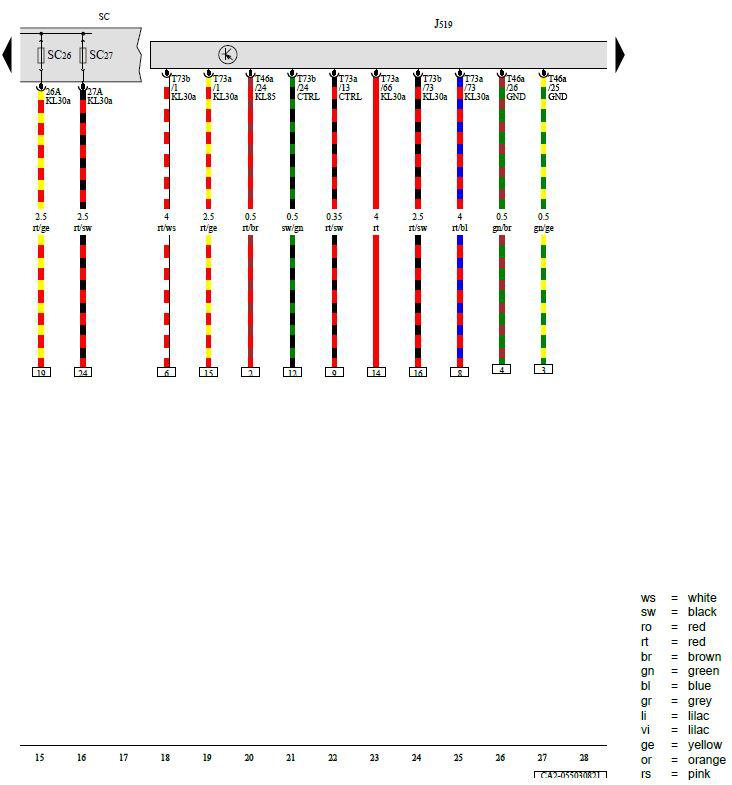

G00609127Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519 -  Vehicle Electrical System Control Module

SC -  Fuse Panel C

SC26 -  Fuse 26 (On Fuse Panel C)

SC27 -  Fuse 27 (On Fuse Panel C)

T46a -  46-Pin Connector, Black

T73a -  73-Pin Connector, Black

T73b -  73-Pin Connector, Black
