Overview - Ignition Key

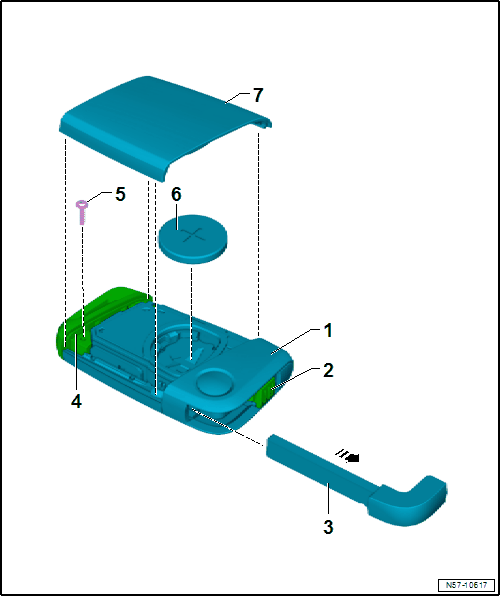

Fig 1: Exploded View Of Ignition Key

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Radio-Frequency Unit
- Adapting. Refer to Ignition Key, Adapting .
Release
Emergency Key
Cap
- Removing and Installing. Refer to IGNITION KEY CAP, REMOVING AND INSTALLING .
Screw
- 1 Nm
Battery
- Removing and Installing. Refer to KEY BATTERY, REMOVING AND INSTALLING .
Battery Compartment Cover
