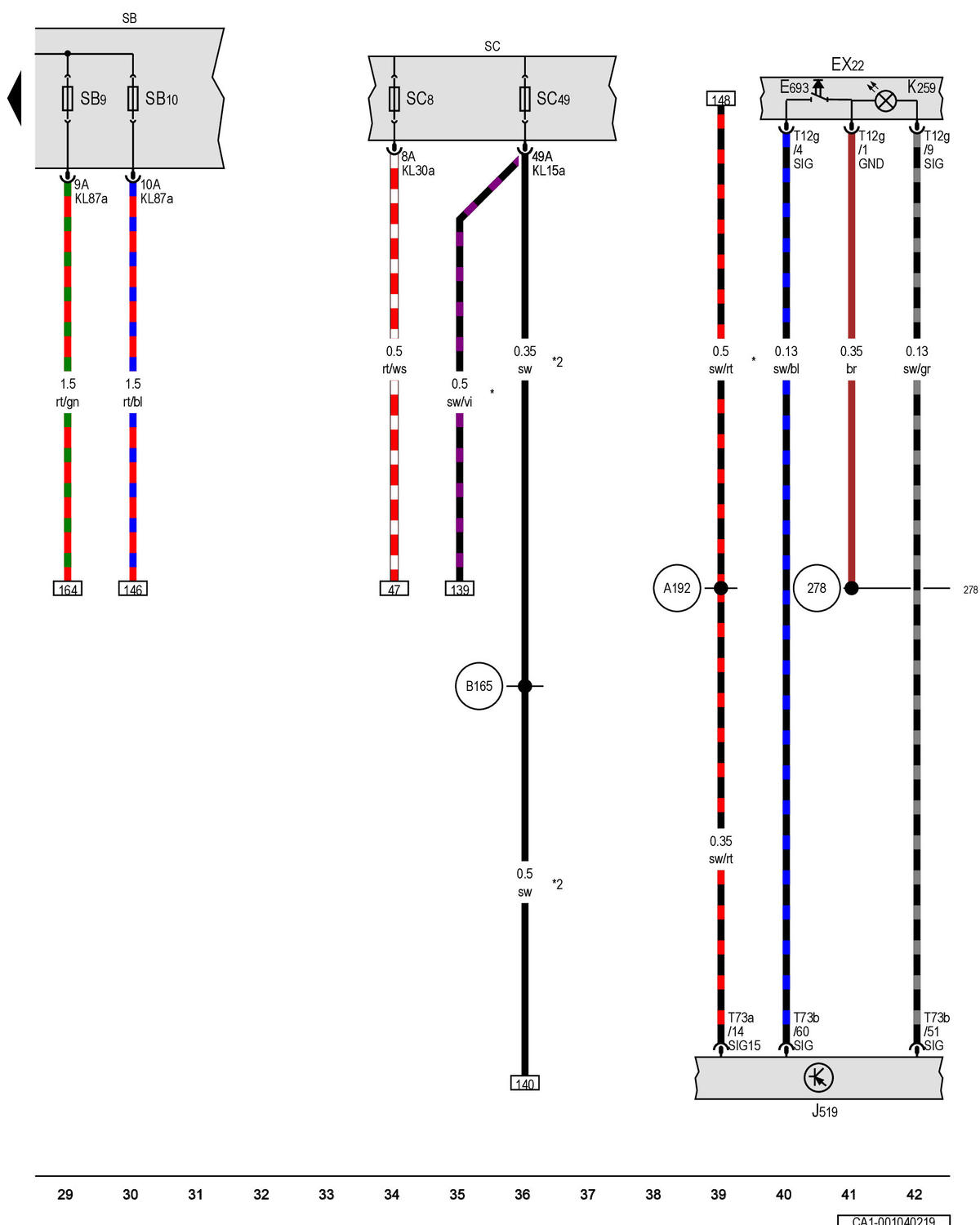

Switch Module In Instrument Panel, Center, Vehicle Electrical System Control Module, Fuse Panel B, Fuse Panel C: Notes

GWWCA1-001040219

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
