Home >> Volkswagen >> 2019 >> Arteon SE R-Line, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagram >> Wiring Diagram >> Engine/Motor Control Module, Exhaust Door Control Unit 2, Access/Start System Interface >> Notes

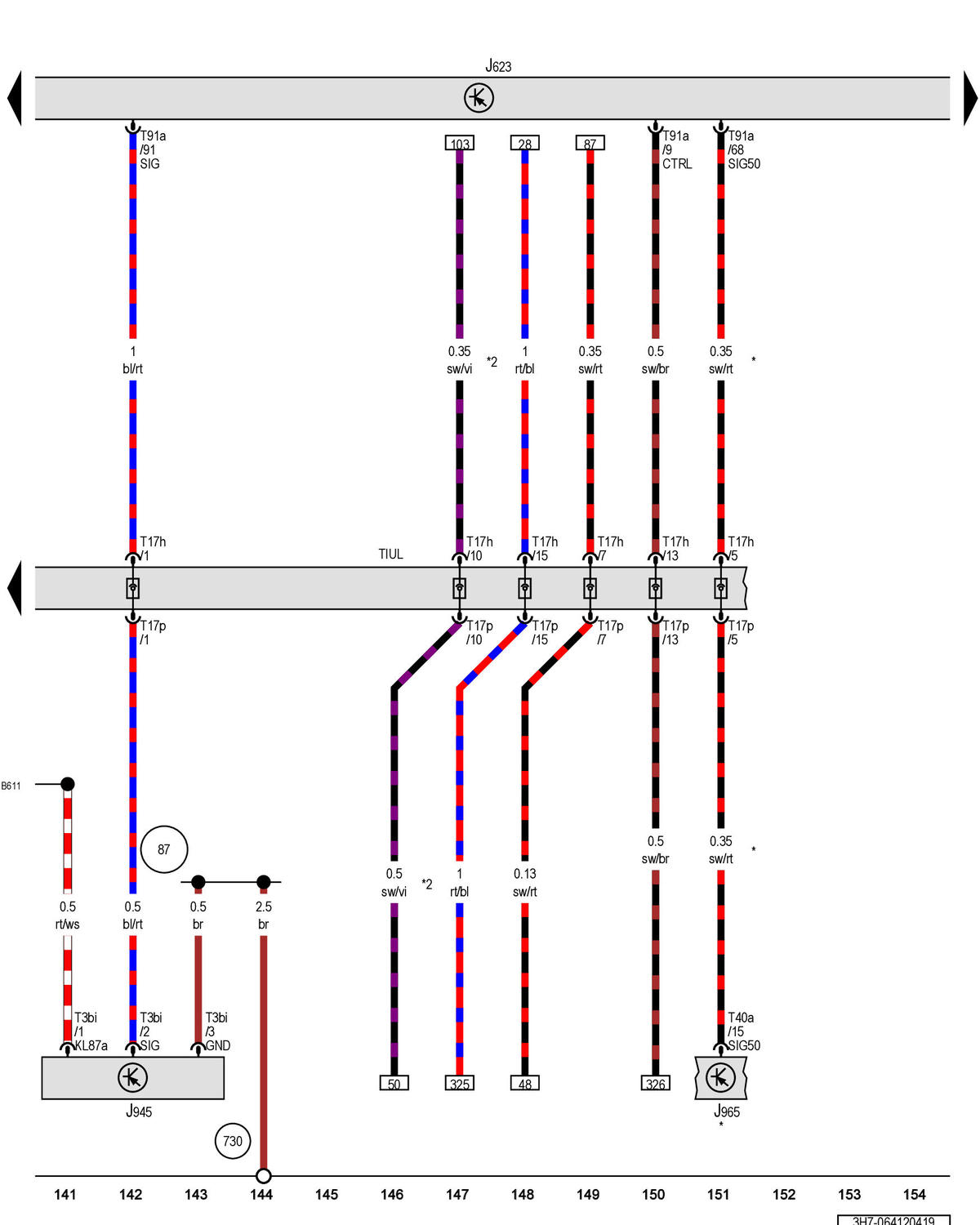

Engine/Motor Control Module, Exhaust Door Control Unit 2, Access/Start System Interface: Notes

GWW3H7-064120419

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
