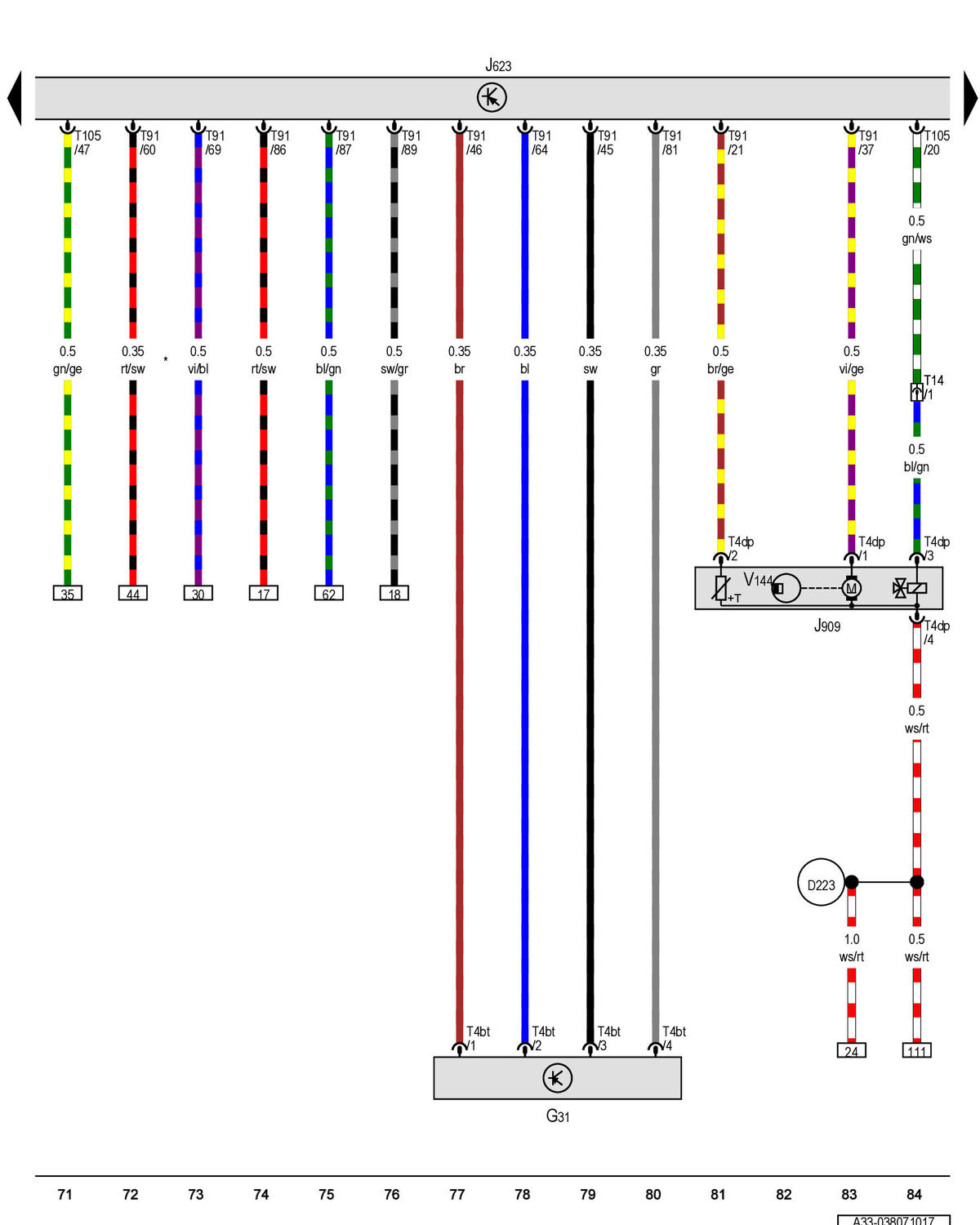

Charge Air Pressure Sensor, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Leak Detection Pump: Notes

GWWA33-038071017

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
