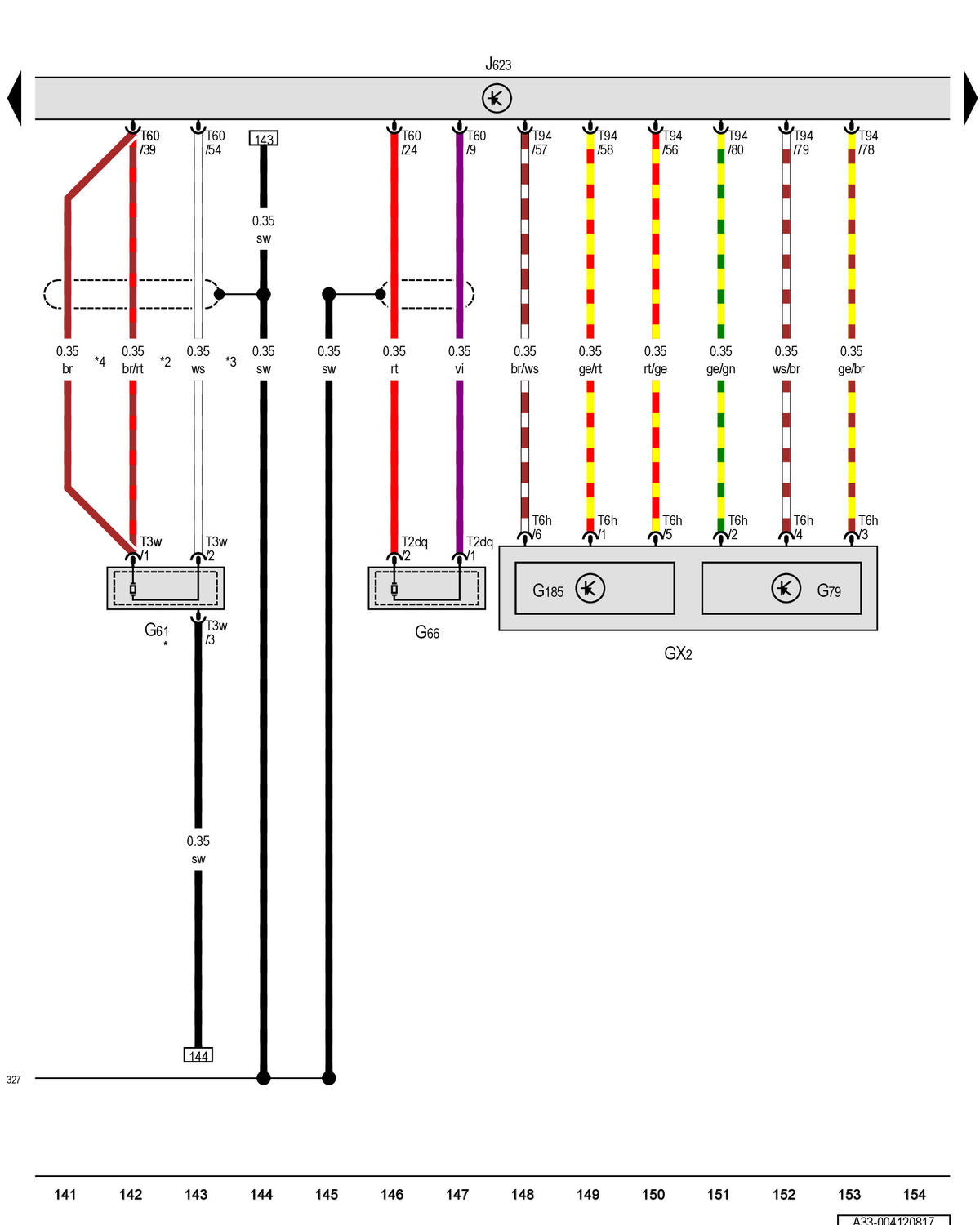

Knock Sensor 1, Knock Sensor 2, Engine/Motor Control Module: Notes

GWWA33-004120817

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
