Transmission Overview, AWD

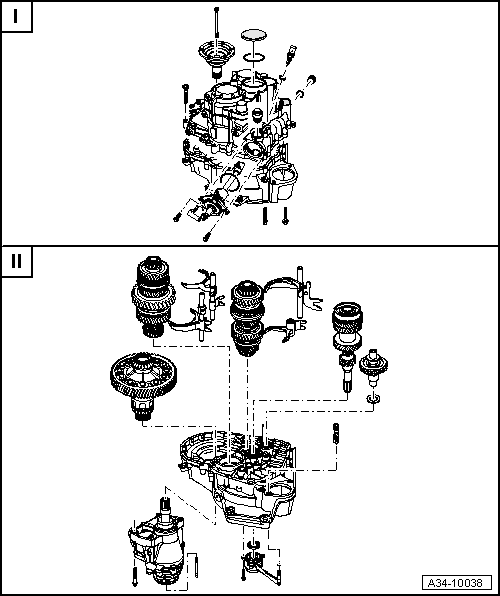

Fig 1: Exploded View Of Transmission AWD
GWWA34-10038Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. l -  Refer to OVERVIEW - TRANSMISSION HOUSING AND SELECTOR MECHANISM
  2. l -  Refer to OVERVIEW - SHIFT UNIT
  3. ll -  Refer to OVERVIEW - DRIVE AXLE, OUTPUT SHAFTS, DIFFERENTIAL, GEARSHIFT RODS, AWD
  4. ll -  Refer to OVERVIEW - SHIFT FORKS
