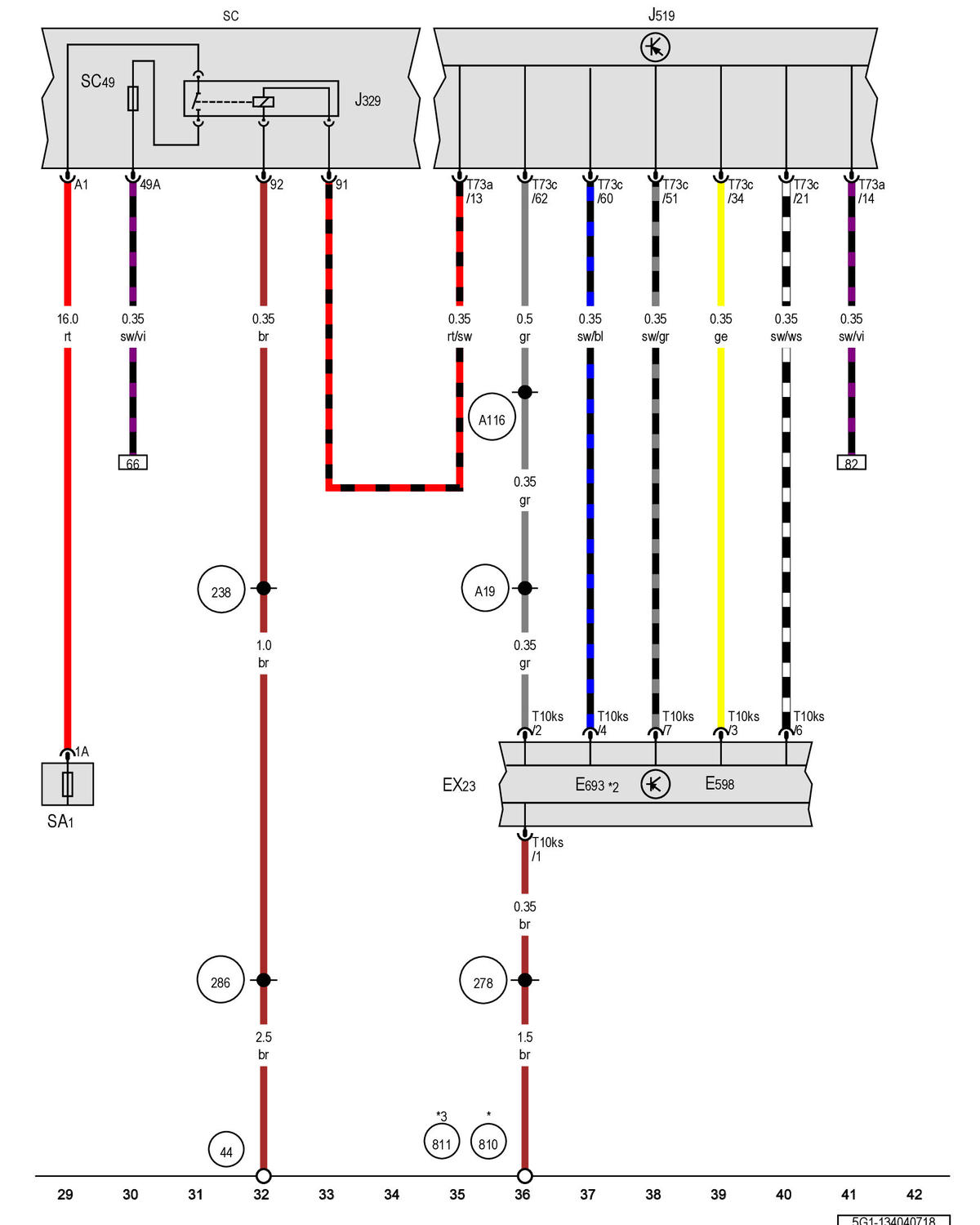

Center Console Switch Module 1, Driving Program Button, Start/Stop Mode Button, Terminal 15 Power Supply Relay, Vehicle Electrical System Control Module, Fuse Panel C: Notes

GWW5G1-134040718Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
