Subwoofer -R211-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment.

-- If equipped remove the ignition key.

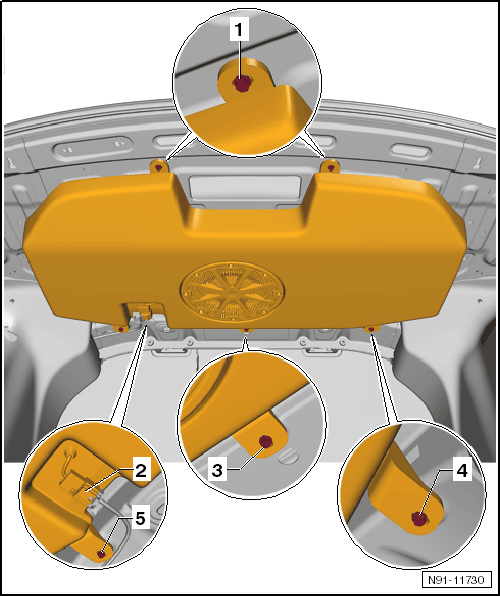

GWWN91-11730Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CAUTION:

If the subwoofer starts to fall down after removing the first bolts, then the mounting tabs still connected can become damaged. Have a second technician hold the subwoofer to keep it from falling down.

-- Disconnect the connector -2-.

-- Remove the bolts -1 through 5-.

-- Remove the subwoofer from the luggage compartment.
