Front Body Underbody Protection Detailed View

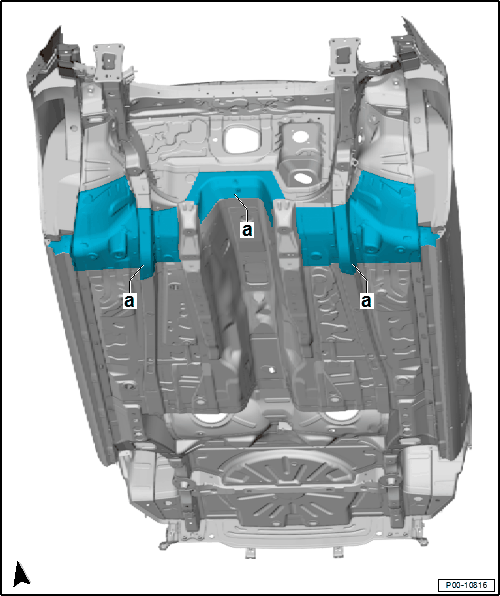

GWWP00-10816Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a -Underbody Protection

    Underbody Protection

    • Layer thickness 0.3 mm
NOTE:

The underbody protection (stone chip protection) is to be repaired according to its original conditions in appearance and layer thickness.

Water drain holes must remain free.

All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.
