Home >> Volkswagen >> 2017 >> GTI Autobahn, Standard Trans >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> Wiring Diagram (Engines: CRUA - 1 Of 2) >> Wiring Diagrams >> Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine Control Module >> Notes

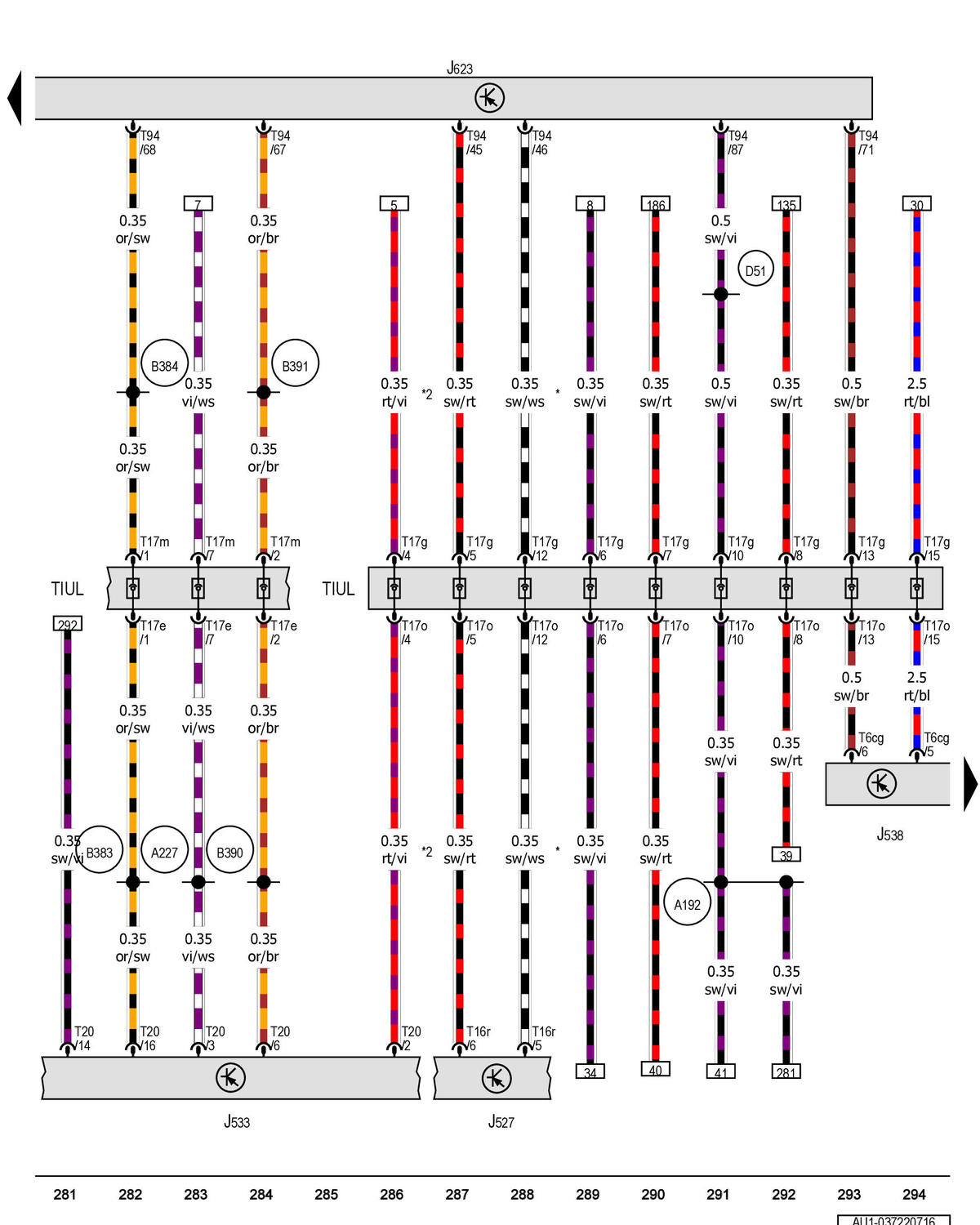

Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine Control Module: Notes

GWWAU1-037220716

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
